Used 2018 Dynamax Isata 5 36DSD

Motor Home Super C - Diesel

Stock #61410A

Jacksonville FL

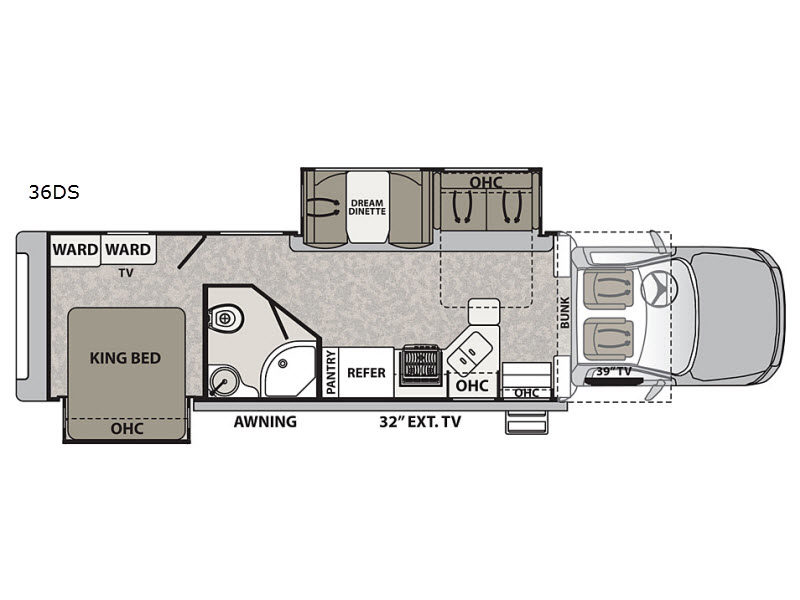

Floorplan - 2017 Dynamax Isata 5 36DS

1 of 6

Sale Price: $150,995
List: $160,750
You Save: $9,755

Payments From: $1,010 /mo.

Sleeps 7
2 Slides
Bunk Over Cab

Outdoor Entertainment

36ft Long

See All Specs

Specifications

Sleeps	7	Slides	2
Length	36 ft 5 in	Ext Width	8 ft
Ext Height	12 ft 4 in	Hitch Weight	10000 lbs
GVWR	19500 lbs	Fresh Water Capacity	95 gals
Grey Water Capacity	42 gals	Black Water Capacity	42 gals
Tire Size	225/70R19.5G	Furnace BTU	42000 btu
Fuel Type	Diesel	Miles	6700
Engine	Cummins 6.7L I6 Turbo	Chassis	Ram 5500 SLT
Horsepower	325 hp	Fuel Capacity	52 gals
Wheelbase	264 in	Number Of Bunks	1
Available Beds	King	Torque	750 ft-lb
Refrigerator Type	Double Door Residential Stainless Steel	Refrigerator Size	16 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	7000 lbs
Axle Weight Rear	13500 lbs	LP Tank Capacity	20.3
AC BTU	15000 btu	TV Info	Above Cab 39" TV, Bedroom, Exterior 32" TV
Awning Info	16'	Gross Combined Weight	37500 lbs
Shower Type	Radius	Electrical Service	50 amp
VIN	3C7WRMDL4HG504511

Call Us at (904) 783-0313

Features

Standard Features (2018)

Chassis

Ram® 5500 SLT Chassis
Cummins® 6.7L I6 Turbo Diesel Engine (325hp/750 ft.-lbs. of Torque)
AISIN® HD 6-Speed Automatic Transmission
52-Gallon Fuel Tank
9-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (10,000 Tow lbs.) with 7-Way Round Tow Connection
Trailer Brake Control
Cummins® Smart Exhaust Brake System
Ram® ESC Suspension and Stability Package
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Dual 12V Chassis Batteries
Dual 220-Amp Alternators (440 Total Amps)
4-Wheel ABS
B-20 Bio Diesel Capability
Ram® 50KSI Chassis Construction
Aluminum Running Boards
Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
Single Front Wheels: Aluminum (19.5”x 6.0”) *Outside Rims are Polished
Dual Rear Wheels: Aluminum (19.5”x 6.0”) *Outside Rims are Polished
4.88 Rear Axle Ratio
Daytime Running Lights
Leatherette Reclining Driver and Passenger Seats
Power Driver Seat
Backup Camera
8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub (SD, USB, AUX), and Six (6) Speakers
Navigation-Capable: with Installation of GPS Module Available from your Local Ram® Dealer
12V and USB Accessory Ports
Temperature/Compass Gauge with Traveler/Mini-Trip Computer
Cruise Control
Adjustable Steering Column
Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
Power Windows and Locks
3-Point Seat Belts
Front Safety Airbags
Drink Holders

Construction

2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Gel-Coat Fiberglass Walls with Azdel® Backing
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, Rear Cap, and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dark-Tinted, Frameless Windows
Seamless, Easy-Clean Rotocast Storage Compartments
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
Electric Slide System

Exterior

Custom Full Body Paint Package with Diamond Shield® Paint Protection
Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Shade
Keyless Entry Touch Pad at Coach Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps
Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights

Interior

Front Cab-Over Bunk Area with Mattress (54”x80”)
Premium Vinyl Flooring
Deluxe Carpet with Pad in Living Area Slide Room(s)
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Coordinating Window Treatments with “Quick Change” Fabric Panels
Blackout Roller Shades
Hardwood Raised Panel Cabinet Doors and Drawer Fronts
Full Extension, Soft-Closing Drawer Guides (where applicable)
Hidden Hinges
39” LED TV (Living Area)
Blu-Ray® Home Theater AM/FM/CD/DVD System with 5.1 Surround Sound (Living Area)
Lighted Entry with Non-Skid Rubber Steps and Risers
Privacy Curtain for Cab-Over Bunk
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

16 Cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel)
Sealed Gas Range with Glass Cover

Convection Microwave Oven
Solid Surface Countertops
Double-Bowl Stainless Steel Sink with Covers
Residential Single-Handle Faucet with Sprayer
Pantry (Floor Plan Specific)
Under-Cabinet Lighting
Kitchen Trash Can (Floor Plan Specific)
MaxxAir® Power Vent with Built-In Rain Cover and Remote Bedroom or Bunk Area

Bedroom

36DS: King Bed (67”x75”) with iCool® Gel-Infused Memory Foam Mattress
35DB: Queen Bed (60”x75”) with iCool® Gel-Infused Memory Foam Mattress
Designer Bed Package
32” LED TV
Cedar-Lined Wardrobe
Deluxe Padded Headboard
LED Reading Lights
USB Charging Ports
35DB: Upper Bunk Bed (28”x76”) and Lower Bunk Jackknife Sofa
35DB: LED TV in Bunk Bed Area

Bathroom

ABS Shower
Shower Skylight
Oxygenics Body Spa® RV Shower Head
Residential Faucet with Sink
Porcelain Toilet (Macerating Toilet: Floor Plan Specific)
MaxxAir® Power Vent with Built-In Rain Cover and Remote

Utilities

Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service
2000W Pure Sine Wave Inverter/Charger
6kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Dual Roof-Mount and Ducted 15,000-BTU Air Conditioners with Heat-Pumps
42,000-BTU LP Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go™ On-Demand Water Heater (LP)
Thermostatically-Controlled Heating and Cooling
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Digital Monitor Panel with LP/Tank Readout in Service Bay
Exterior Shower in Service Bay
Exterior GFCI Receptacle
Jack® Digital Antenna with LED Signal Strength Indicator
Cable TV/Satellite Hookup in Service Bay
Black Tank Flush
Furnace-Heated Utility Compartment
12V On-Demand Water Pump
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher

Options

Factory 4-Wheel Drive
9 cu ft. 2-Way Refrigerator (Two-Door)
8kW Onan® Diesel Generator with Auto Transfer Switch
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
Solar Panels - Two 100 Watt with 30 Amp Controller

See us for a complete list of features and available options.

All features and specifications are subject to change.
