Floorplan - 2016 Forest River RV Charleston 430RB
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+79- Sale Price: $180,995
- List: $229,998
- You Save: $49,003
-
Sleeps 4
-
4 Slides
-
Fiberglass ExteriorWalk-Around King Bed
-
43ft Long

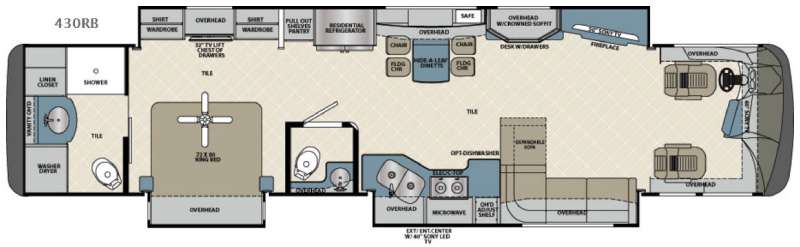

430RBTS Floorplan
Specifications
| Sleeps | 4 | Slides | 4 |
| Length | 42 ft 11 in | Ext Width | 8 ft 4 in |
| Ext Height | 12 ft 9 in | Int Height | 7 ft |
| Hitch Weight | 15000 lbs | GVWR | 44320 lbs |
| Fresh Water Capacity | 86 gals | Grey Water Capacity | 66 gals |
| Black Water Capacity | 42 gals | Tire Size | 22.5" |
| Furnace BTU | 50000 btu | Fuel Type | Diesel |
| Miles | 12101 | Engine | Cummins ISL9 450 HP |
| Chassis | Freightliner XCR | Horsepower | 450 hp |
| Fuel Capacity | 150 gals | Available Beds | 2 |
| Torque | 1250 ft-lb | Refrigerator Type | Residential |
| Electrical Service | 50 amp | VIN | 4UZFCHCYXGCHS0673 |
Description
The Charleston 430RB class A diesel motor home by Forest River features a bath and a half, a full wall slide, plus an exterior entertainment center.
As you enter the motor home you will notice the driver and passenger's chairs swivel and recline to provide additional seating in the living area. Along the passenger side there is a slide with an extendable sectional sofa with overhead storage, electric cooktop, microwave, and a large kitchen sink. There are overhead cabinets and an adjustable shelf to store your dishes and things.
On the opposite side of the motor home the full wall slide features a 50" Sony TV with fireplace underneath, a desk with drawers and overhead storage with a crowned soffit, and a hide-a-leaf dinette with two standing chairs plus two folding including overhead storage and a safe. Continuing along the full wall slide is a residential refrigerator, a pantry with pull out shelves, and in the bedroom is a chest of drawers, a 32" TV lift, and two shirt wardrobes. Across from the wardrobes there is a king bed slide with overhead storage. You are sure to love the ceiling fan in the center of the room.
There is a half bath between the kitchen/living space and the bedroom for your family and guests.
Located in the very rear of the motor home is the master bath. There is a shower, linen closet which you can easily store towels or toiletries, vanity, sink, washer and dryer, and a toilet.
Outside you can enjoy watching a 40" Sony LED TV on the entertainment center, plus many more features to love inside and out!
Features
- Freightliner XCR Raised Rail Chassis
- Cummins ISL9 450HP @2100RPM, 2200GOV RPM, 1250 LB/FT @ 1400RPM
- Allison 3000MH 6-speed transmission
- 120V Engine Heater 1000W
- 22.5″ Polished Aluminum Wheels
- Michelin XZA3+ 275/80R22.5 16 ply radial tires
- Trailer Hitch Capacity, 15,000 lb
- Allison electronic push button shifter
- 100 gallon, locking dual fill fuel tank
- 13 Gallon DEF Tank
- LCD engine message center
- Day time running lights
- 7-Pin tow power connector
- 18.7 CFM air compressor
- Farr Eco-air cleaner
- Air filter restriction indicator
- Fuel/water separator
- Brake line air dryer with heater
- Automatic, heated moisture ejectors
- Power steering
- Washer/wiper with intermittent function
- 160 amp alternator
- Two (2) Maintenance Free 1900CCA batteries
- Full air ABS brakes w/ auto slack adjuster
- C-Brake by Jacobs with LOW/OFF/HI brake dash switch
- Telescopic/tilt steering wheel
- Neway air suspension front and V-Ride rear
- Sachs custom tuned shock absorbers
- 55 degree wheel cut
- Auto air suspension deflation system
- Cross flow, rear mounted radiator
- Transmission oil cooler
- 5 year / 100,000 mile coolant (some maintenance required)
- V.I.P. Smart Wheel, 4-Spoke 18″ premium burl wood steering wheel
- Power stepwell cover
- Entry assist handle
- Electronic cruise control with high idle
- Multiple auxiliary charging ports at dash
- Ingersoll-IMT F22 10,000# drop center tag axle
- Adjustable suspended pedals with Teleflex flush mount accelerator
- Bendix ADB22X Air Disc Front Brakes
- Fiberglass front and rear caps
- Full body painted exterior (4X clear coat)
- Four (4) point fully auto hydraulic leveling system w/ auto air dump
- Morryde steel basement structure
- Tru-Brace chassis support system
- Rust resistant aluminized steel chassis skirts
- Diamond Shield front mask protective film
- Electric generator Slide
- 1 Piece fiberglass Roof
- Top-mount, remote, exterior, heated mirrors with cameras
- Frameless dual pane, dark tint windows
- Automotive foam and Ziebart seal undercoating
- Carefree power door awning
- Carefree Freedom patio box awning w/LED lighting and auto retract with direct response electronics
- Carefree slide toppers with covers
- Full height strut assisted compartment doors w/full pass through storage
- "One Key" system, ext-compartment, entry door & fuel fill doors
- Quiet integrated A/C intake/ducting roof system
- Crowned and layered vacuum bonded fiberglass roof
- Vacuum bonded 3” floor with tubular steel frame
- Gel coated vacuum bonded aluminum tube with fiberglass and block foam insulation sidewalls
- 1/2″ Structure wood flooring
- Block foam polystyrene insulation
- 33″ Entryway
- In wall channeled drains for A/Cs
- Steel basement construction
- Tubular steel firewall with polystyrene insulation
- Shower skylight
- Lighted exterior assist handle
- Two piece rear ladder
- 84″ interior ceiling height
- PTL Entrance door with deadbolt
- Auxiliary air chuck (front firewall)
- Auxiliary LP supply, quick connect (passenger side)
- Full length mud flap with chrome Forest River name
- Slide tray in basement compartment
- 50A service with auto transfer switch
- 10kW Onan diesel generator w/electric slide tray
- Electronic battery disconnect switch
- Remote generator start switch on dash and in Bedroom
- LED Ceiling light package
- Driver and Passenger LED ceiling map lights
- Cosmetic bathroom lighting (N/A 430RB)
- Decorative wall and dinette lighting where applicable
- Auxiliary engine start switch at dash
- Individual reading lights bed overhead
- 2000 W pure sine inverter-converter
- Euro style 12V Switches
- Auto generator start module
- Dimmer control living room and bedroom ceiling lights
- Four (4) Six volt deep cycle house batteries
- Two (2) Master electric convenience shut off switches
- 30″ Auto/Power entrance step
- Patio light
- Easy access fuse/load centers
- Dimmer control living room & bedroom ceiling lights
- Docking lights
- Pop up desk dual USB 110v receptacle at desk (N/A 430BH)
- Energy management system with inverter assist
- Keyless Entry
- 35′ Power cord with electric reel
Plumbing
- Variable speed constant pressure water pump
- Bath - Solid surface under mount sink
- Kitchen - Stainless steel under mount sink
- Whole house water filter
- Black water tank flush system
- Kitchen-High rise single lever faucet with pull-out sprayer
- Double lever lavatory faucets
- One piece fiberglass shower with glass door
- Porcelain china stool
- Techma-macerator stool (rear bath) (N/A 430BH)
- Clean easy exterior shower hose
- Individual zoned hot/cold manifold water supply system
- 360 Siphon vent caps
- One piece windshield
- Power front night and day shade
- Manual passenger & driver windows day/night shade
- Dash burl panels
- Fog Lights
- Dash radio with integrated color back-up and side camera pkg with navigation
- Wrap around cockpit with nine (9) gauge instrument cluster
- Driver 360 degree swivel and recline seat w/6-Way power adjustment
- Passenger 360 degree swivel and recline set w/power 6-Way adjustment and power footrest
- Soft touch Flexsteel driver/passenger seat
- Passenger seat console (vinyl wrapped)
- Lighted step well
- Two (2) Defroster fans with high and low settings
- Driver/passenger cup holders
- Automotive dash AC/Heater with deluxe controls
- Tile with solid surface edged step well
- Premium Freightliner gauge package w/chrome bezels
- 50″ SONY® LED TV, living room (N/A 430BH)
- 40″ SONY® LED TV, living room with slide (N/A 430RB)
- 32″ SONY® LED TV, bedroom
- 40″ SONY® LED TV, front dash overhead
- BOSE® premium sound bar system with powered subwoofer
- Two flip down LCD monitors with DVD and AV inputs (1 per Bunk) (N/A 430RB)
- Trav’ler (Winegard) satellite prep.
- Cable TV prep
- Hi-Definition digital TV antenna with signal strength indicator
- High definition Cat 6 matrix signal distribution
- Blu-ray DVD Player
- Ext/entertainment center in sidewall: 40″ TV and Radio with auxiliary jack
- Two pair dash stereo speakers
Interior
- Polished porcelain tile
- Native Hardwood Cabinetry
- Raised panel hardwood cabinet doors
- Hidden hinges and bar pull style cabinet hardware
- Carpeted living room and dining slide-outs
- Hardwood lighted window valances
- Wardrobe shoe storage rack (N/A 430RB)
- Bedroom carpet with padding (N/A 430RB)
- Villa sofa (with hide a bed) (N/A 430RB)
- Villa expandable sofa (with hide a bed) (N/A 430BH)
- Villa love seat (N/A 430RB)
- Polished solid surface kitchen/dinette c-tops with flush sink covers
- Polished solid surface backsplash with tile inserts kitchen
- Polished solid surface c-tops throughout
- Soft close ball bearing drawer guides in kitchen
- Full extension ball bearing metal drawer guides
- Galley storage compartment for range and sink covers
- Kitchen Pantry (N/A 430BH)
- Pull out kitchen countertop
- Bi-fold doors/pantry, bunk beds (N/A 430RB)
- Free-standing hide-a-leaf dinette with hutch and four chairs (N/A 430BH)
- "Soft Touch" dream booth dinette with storage underneath (N/A 430RB)
- "Soft Touch" padded ceiling with living room hardwood feature
- Roller style day/night shades
- Large bedside wardrobe (N/A 430RB)
- Dresser drawers and wardrobe type cabinets
- 72″ x 80″ Select Comfort air, king bed with bedspread and decorative pillows
- Hardwood headboard with padded insert
- Contoured overhead cabinets in slide out rooms
- Bed night stands
- Mirrored medicine cabinets
- Towel bar, toilet paper holder and towel ring
- Bedroom 2 speed ceiling fan
- Installed wall safe
- 15,000 BTU with heat pump (front/rear), 13,500 BTU (middle) low profile A/C’s
- Holding tank heat pads
- Continuous flow tankless gas hot water heater
- 30,000 BTU Front furnace
- 20,000 BTU Rear furnace
- 30″ OTR convection microwave oven
- Residential French door refrigerator with ice maker
- True-Induction electric cooktop
- Fan in bathrooms with built in thermostat control
- Fantastic fan in galley with wall thermostat and rain sensor
- Stackable washer/dryer
- Electric fireplace
- Basement freezer
- Central vacuum
- 110 GFI protected circuits
- Carbon monoxide detector
- LP gas detector w/auto tank shutoff
- Smoke alarm
- Egress window
- Surface mounted fire extinguisher
- UltraSteer tag axle
- Free-standing hide-a-leaf dinette w/ hutch and four chairs (N/A 430RB)
- Executive dark cherry wood
- Trav’ler (Winegard) satellite antennae (DirectTV-US) (Shaw-Canada)
- Fisher/Paykel stainless steel dishwasher
All standard features and specifications are subject to change.
