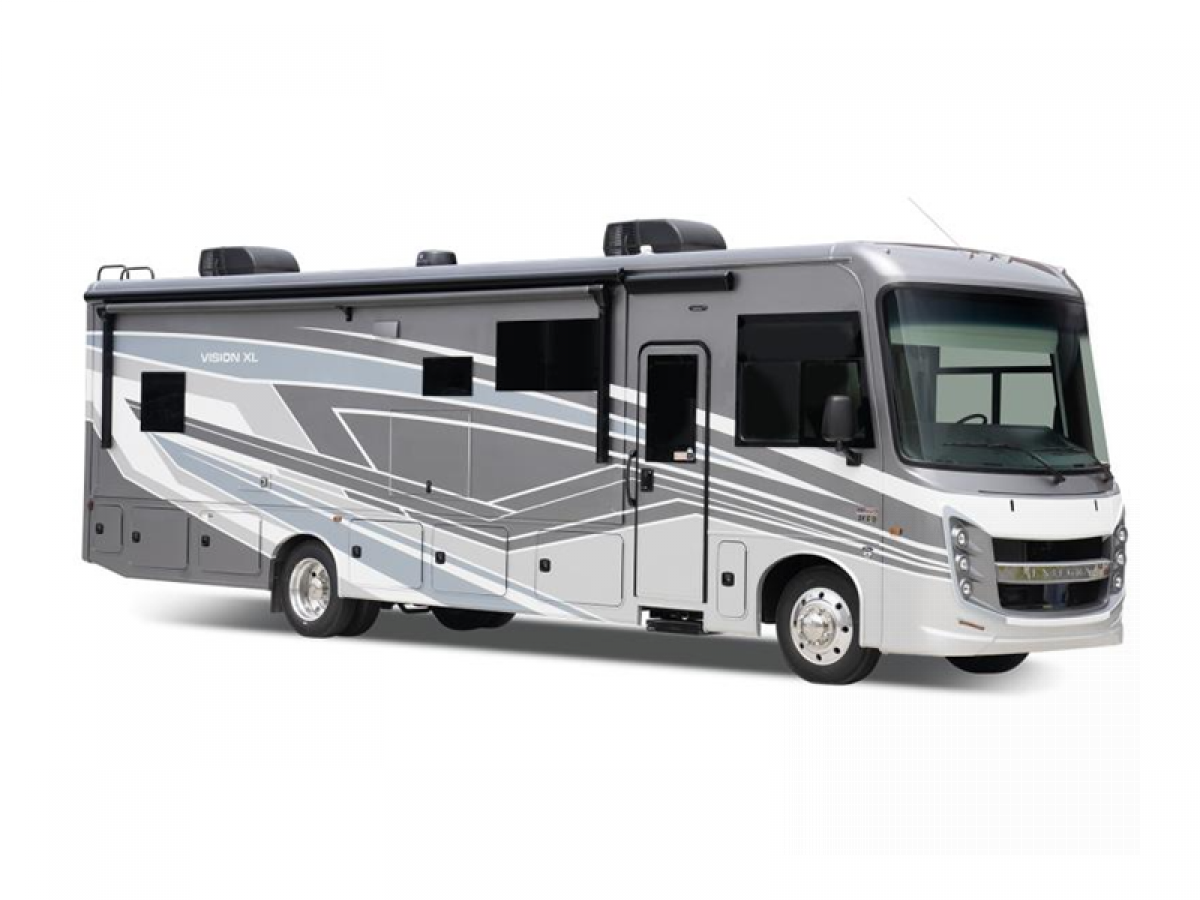

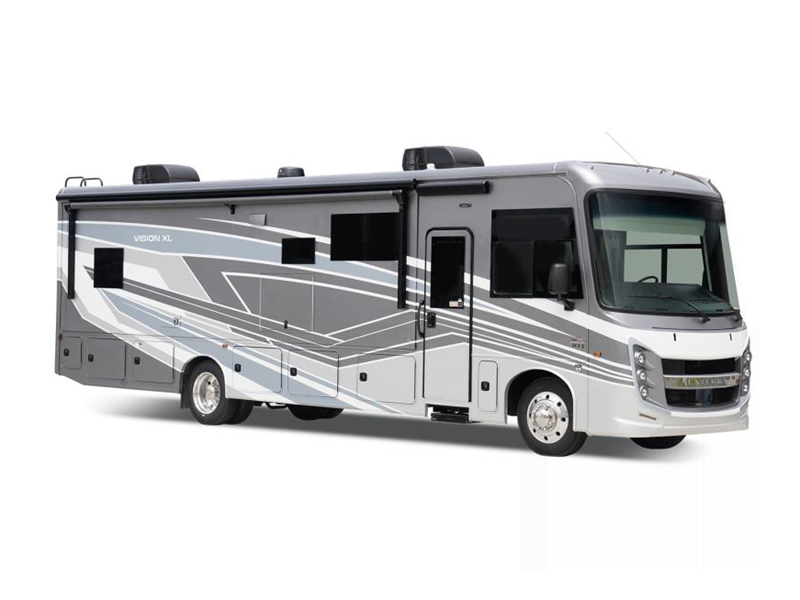

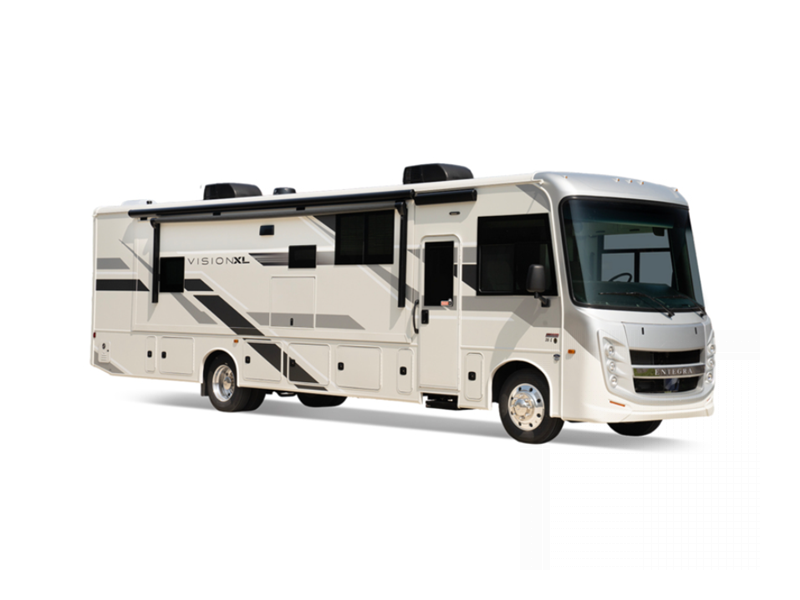

Entegra Coach Vision XL Motor Home Class A RVs For Sale
The Entegra Coach Vision XL Class A gas motorhomes are longer and more spacious to provide more room for everybody! You will have control right at your fingertips with the Firefly Multiplex system that has a wall-mounted touchscreen and mobile app for total coach control.
The E-Z Drive Elite comes with a computer balanced driveshaft, heavy-duty front and rear stabilizer bars, Koni shocks, and more so you can be sure to safely arrive at each destination. A Ford F53 chassis and TuffShell vacuum-bond laminated floors and sidewalls hold them together, and the new fiberglass color with updated graphics is sure to be eye catching. Inside, you'll enjoy LED-lit solid surface countertops, a residential refrigerator, hardwood cabinet doors and drawer fronts, and more luxury features to make you feel right at home.
If you need a little more room for your travels, choose an Entegra Coach Vision XL Class A gas motorhome!
-
Vision XL 31UL
Entegra Coach Vision XL Class A gas motorhome 31UL highlights: Rear Private ... more about Vision XL 31UL
Have a question about this floorplan? Contact Us
Specifications

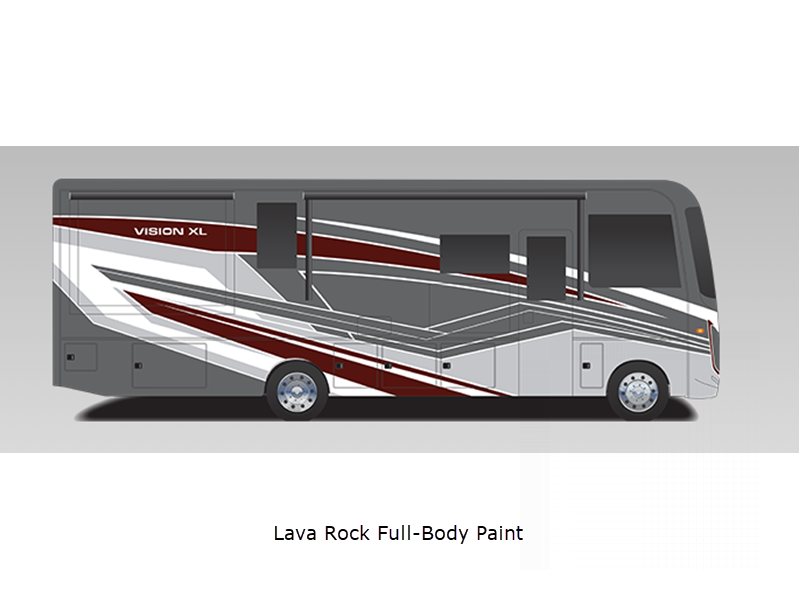

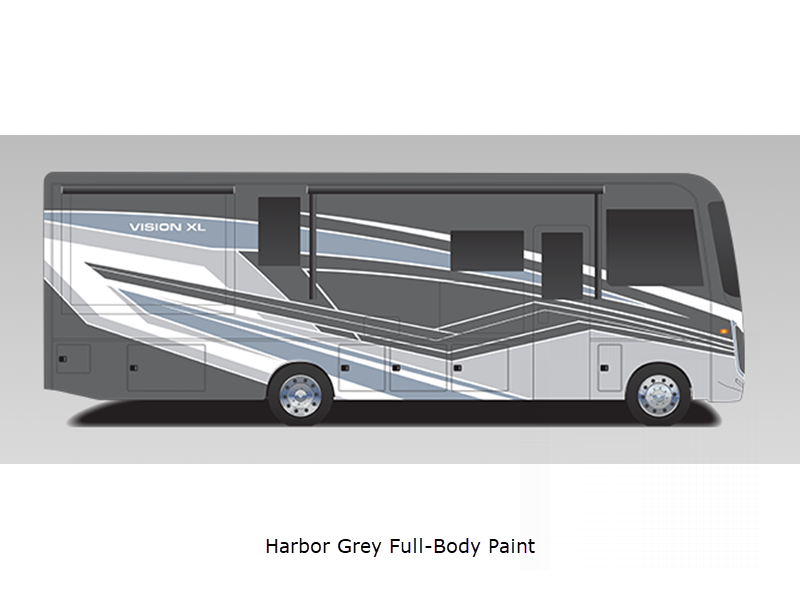

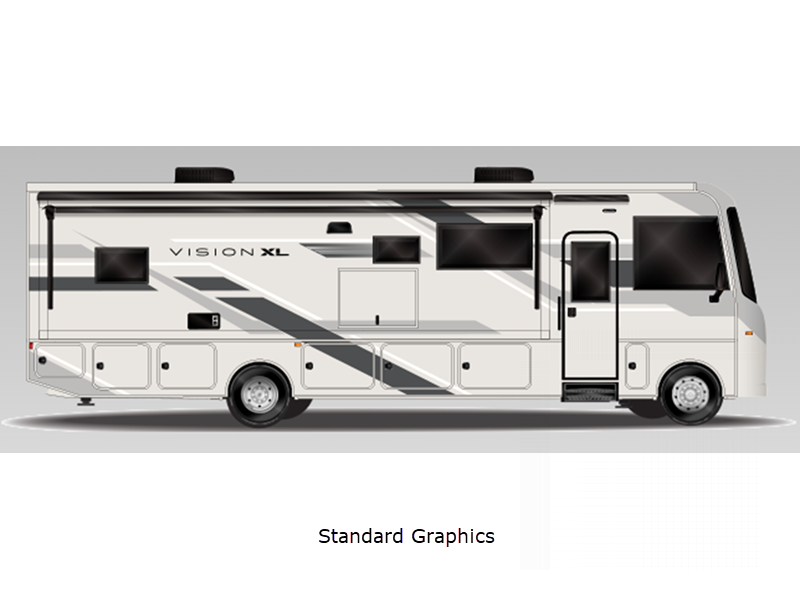

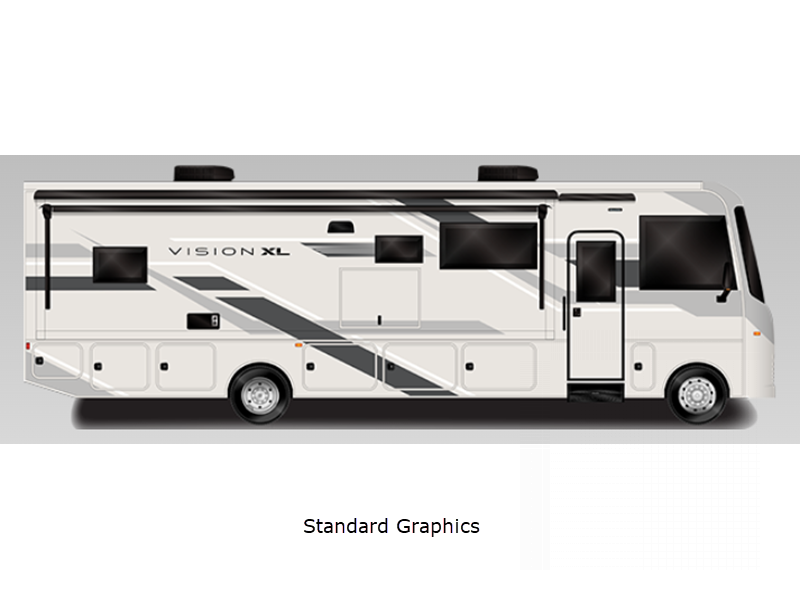

Sleeps 5 Slides 2 Length 33 ft Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Dover, Modern Farmhouse Exterior Color Standard Graphics. Full-Body Paint; Foraker, Fairweather, King, Logan Hitch Weight 5000 lbs GVWR 22000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 50 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt with Auto-Gen Start Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 228 in Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 16' Electric with LED Lights Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Vision XL 34B
Entegra Coach Vision XL Class A gas motorhome 34B highlights: Fireplace Rear ... more about Vision XL 34B
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 36 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Dover, Modern Farmhouse Exterior Color Standard Graphics. Full-Body Paint; Foraker, Fairweather, King, Logan Hitch Weight 5000 lbs GVWR 22000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 40 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt with Auto-Gen Start Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 228 in Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 39" LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 18' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Vision XL 34G
Entegra Coach Vision XL Class A gas motorhome 34G highlights: Theater Sofa ... more about Vision XL 34G
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 36 ft 6 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Dover, Modern Farmhouse Exterior Color Standard Graphics. Full-Body Paint; Foraker, Fairweather, King, Logan Hitch Weight 5000 lbs GVWR 22000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 50 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt with Auto-Gen Start Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 238 in Available Beds RV King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV on Lift, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 23' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Vision XL 36A
Entegra Coach Vision XL Class A gas motorhome 36A highlights: Two Full Bathrooms ... more about Vision XL 36A
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 38 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Dover, Modern Farmhouse Exterior Color Standard Graphics. Full-Body Paint; Foraker, Fairweather, King, Logan Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 80 gals Black Water Capacity 102 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 252 in Number Of Bunks 2 Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 32" x 32" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 39" LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 12' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Radius Electrical Service 50 amp Similar Floorplans
-
Vision XL 36C
Entegra Coach Vision XL Class A gas motorhome 36C highlights: Master Suite Full ... more about Vision XL 36C
Specifications
Sleeps 5 Slides 3 Length 38 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Dover, Modern Farmhouse Exterior Color Standard Graphics. Full-Body Paint; Foraker, Fairweather, King, Logan Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 72 gals Black Water Capacity 72 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-Watt Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 335 hp Fuel Capacity 80 gals Wheelbase 252 in Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV on Lift, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 20' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Vision XL Features:
Standard Features
Chassis
- E-Z Drive™ Elite: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires
- Automatic hydraulic leveling jacks
- Ford® F53 chassis
- 7.3L V-8 335 HP engine with 468 ft.-lb. torque
- 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
- 210-amp alternator
- Catalytic converter theft deterrent
- G-rated highway tires - 235/80R22.5 (34B, 34G), 255/80R22.5 (36A, 36C)
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
- 12V chassis battery
- 80-gal. fuel tank
Construction
- TuffShell™ vacuum-bond laminated floor
- TuffShell™ vacuum-bond laminated sidewalls
- One-piece, seamless, crowned fiberglass roof; TuffShell vacuum-bond laminated roof
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
Heat, AC, Water & Power
- 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
- 5,500-watt generator with auto-gen start
- 1,200-watt inverter
- 50-amp electrical service
- 10 gal. gas/electric water heater
- 200W solar panel with dual controller
- (2) 6V AGM (220Ah) house batteries on slideout tray
- Transfer switch with reverse polarity protection
- 16.5 gal. propane tank (56-lb.) with LP quick-connect hookup
- Heated holding tanks (12V pads)
- Winterization drain system
- Black tank flush
- 12V demand water pump
- Water filtration system
- 30,000 BTU auto-ignition ducted furnace (34B, 34G, 36C); (2) 30,000 BTU auto-ignition ducted furnaces (36A)
Exterior
- Frameless windows
- Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket
- Electric patio awning with LED lights
- Slideout cover awnings

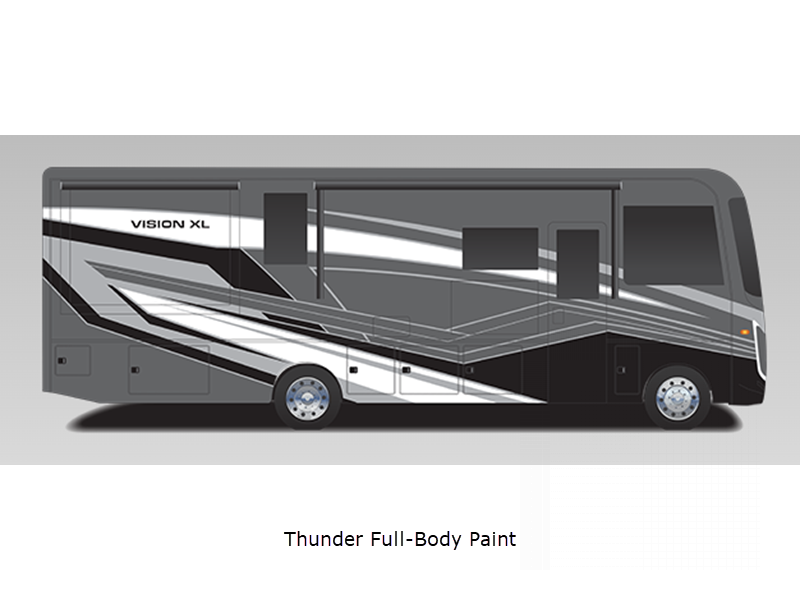

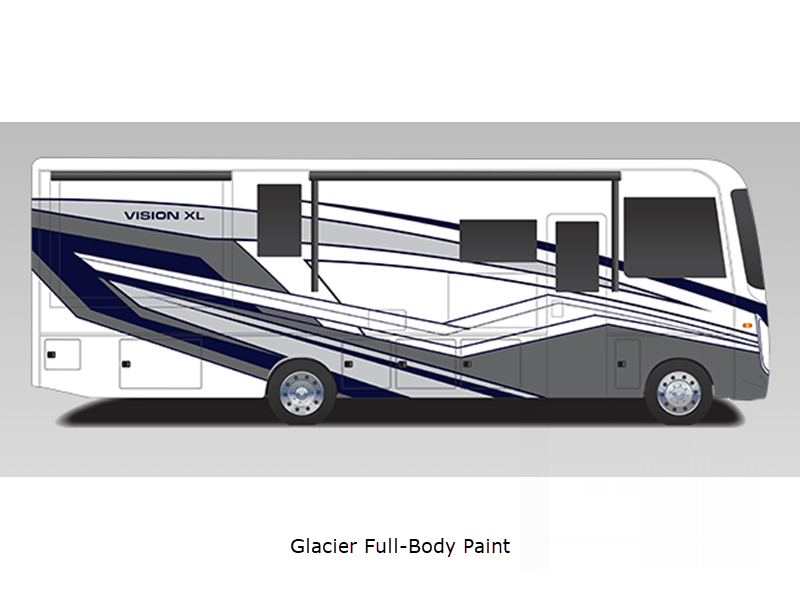

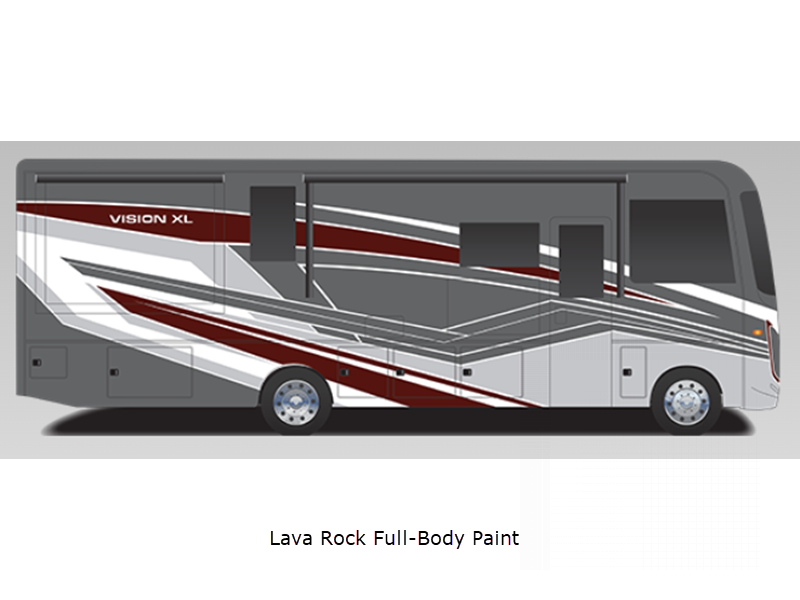

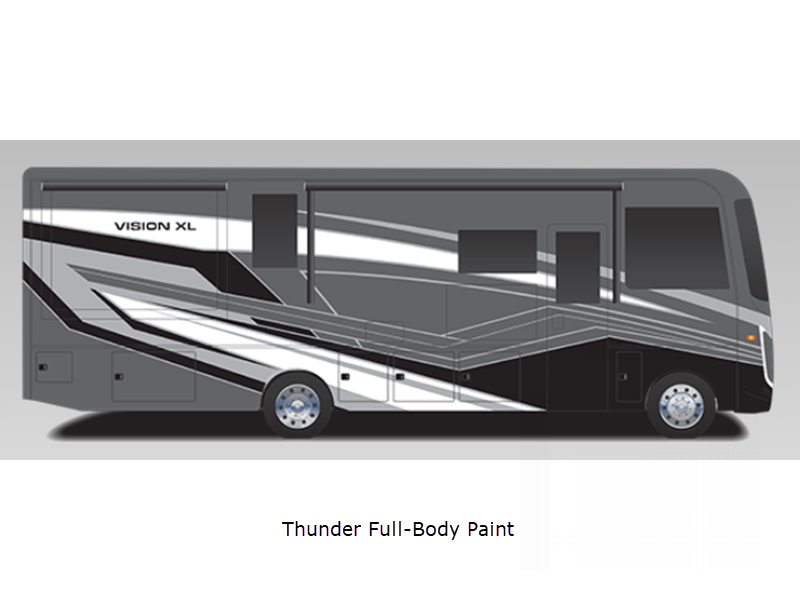

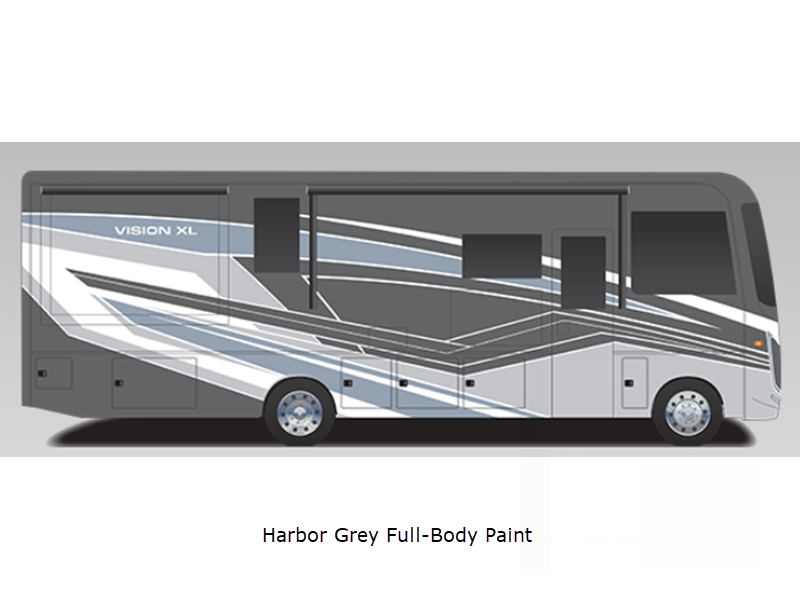

- Fiberglass exterior walls with vinyl graphics
- One-piece, seamless fiberglass front cap with partial paint; One-piece, seamless fiberglass rear cap
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance steps
- Lockable pass-through storage compartments with metal slam latches
- Third brake light
- Roof ladder
- Prep for satellite dish
- Winegard 2.0 Wi-Fi/4G antenna
- Exterior utility center
- Outside shower

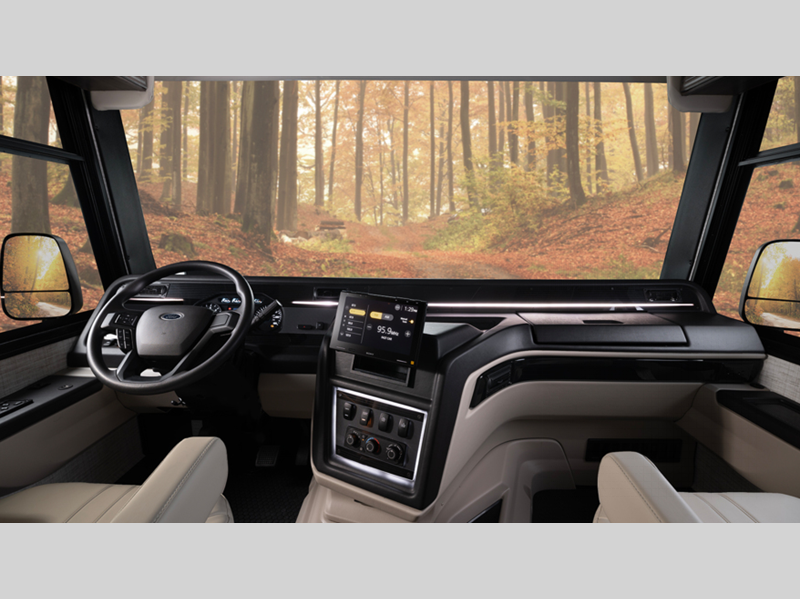

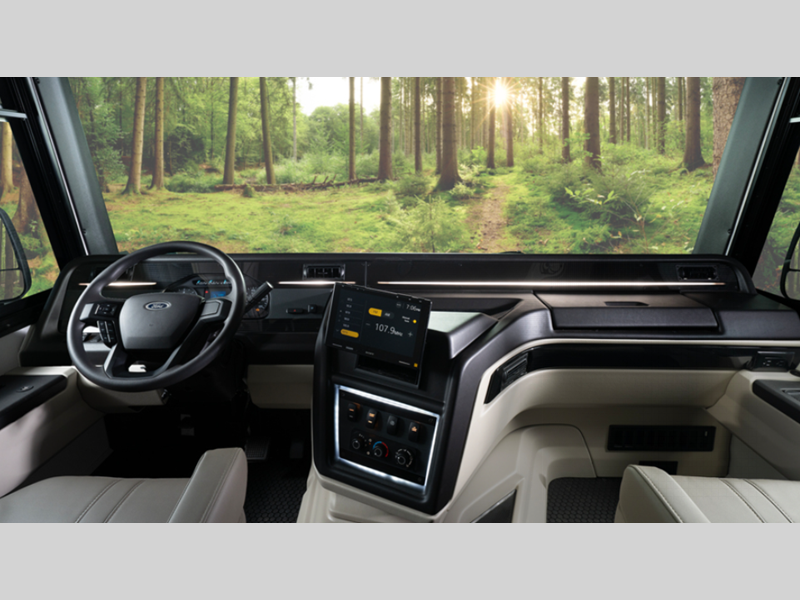

Cockpit
- Sony® infotainment center with Apple CarPlay® and Android Auto™
- Backup and side-view cameras
- Removable driver/passenger cockpit table
- 120-in. panoramic windshield
- 6-way power and swivel driver/passenger seats
- Soft-touch, vinyl-wrapped automotive dash
- Tilt steering wheel
- Cruise control; Hill start assist; Electronic stability control; Traction control
- Auxiliary start
- Power front privacy shade with manual side privacy shades

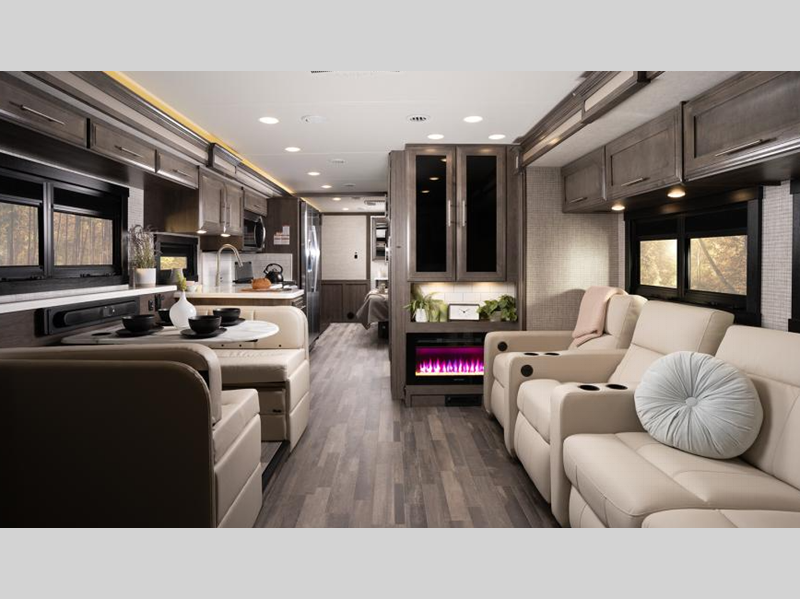

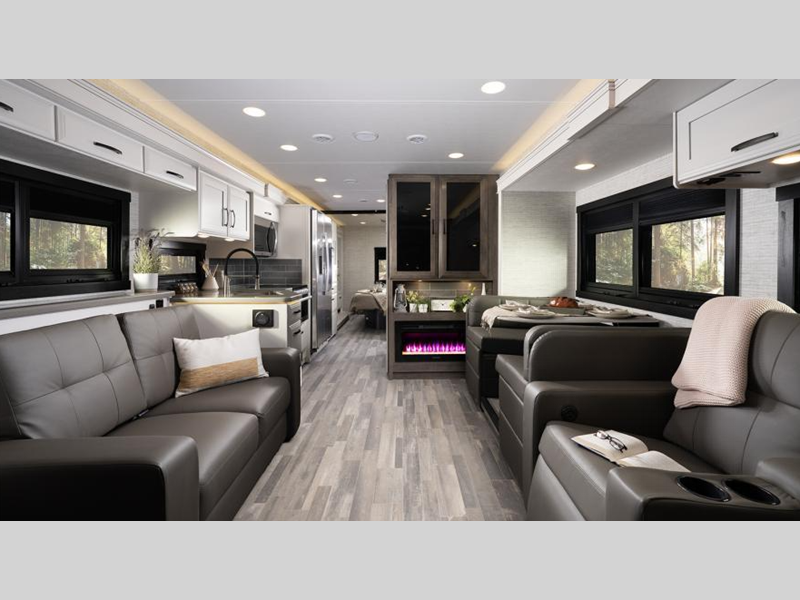

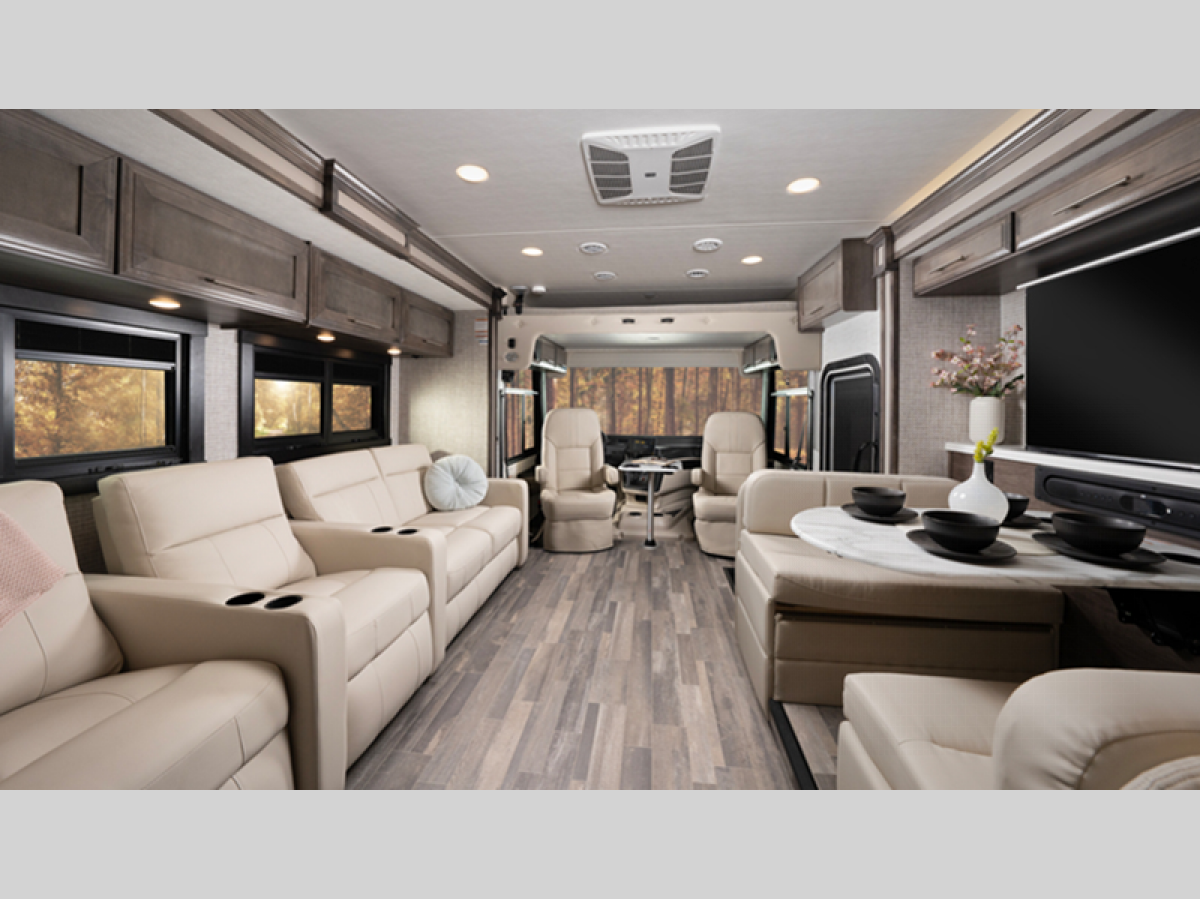

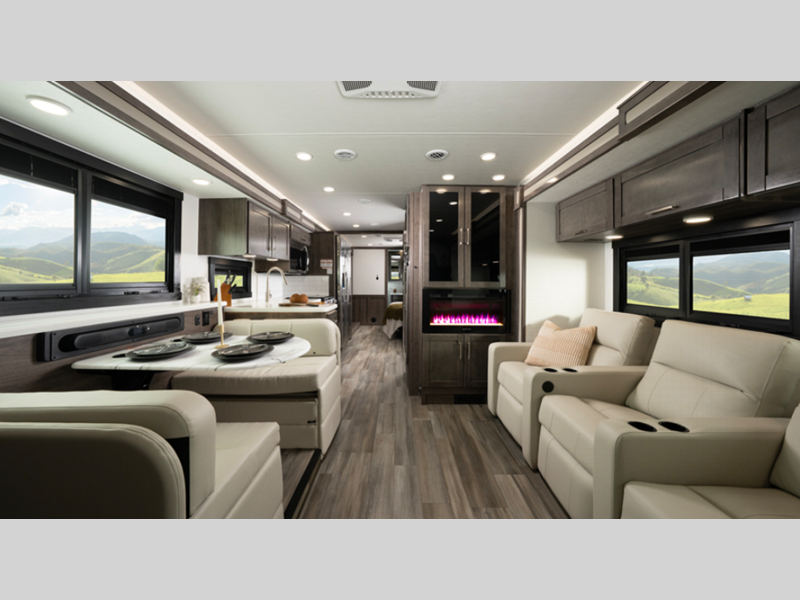

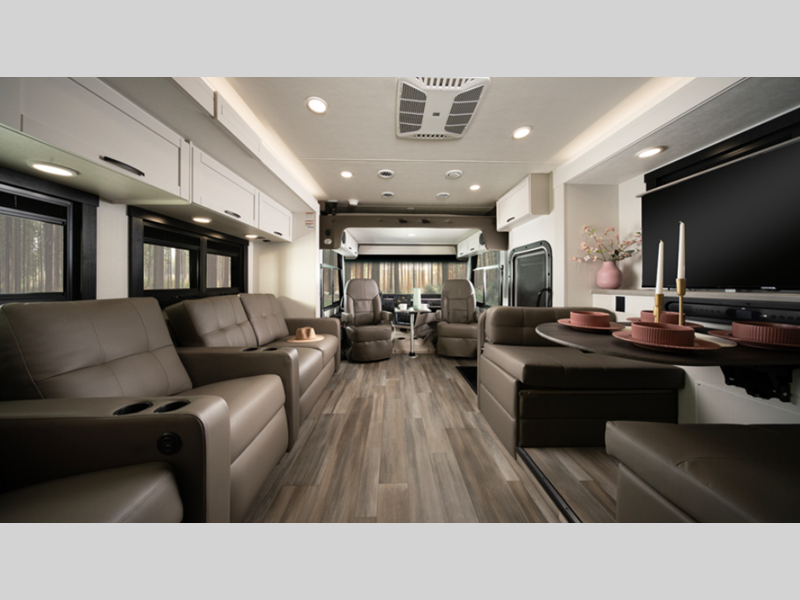

Interior
- LED HD Smart TV in living area
- Integrated day/night cassette shades
- Cable TV hookup with RG-6 coax

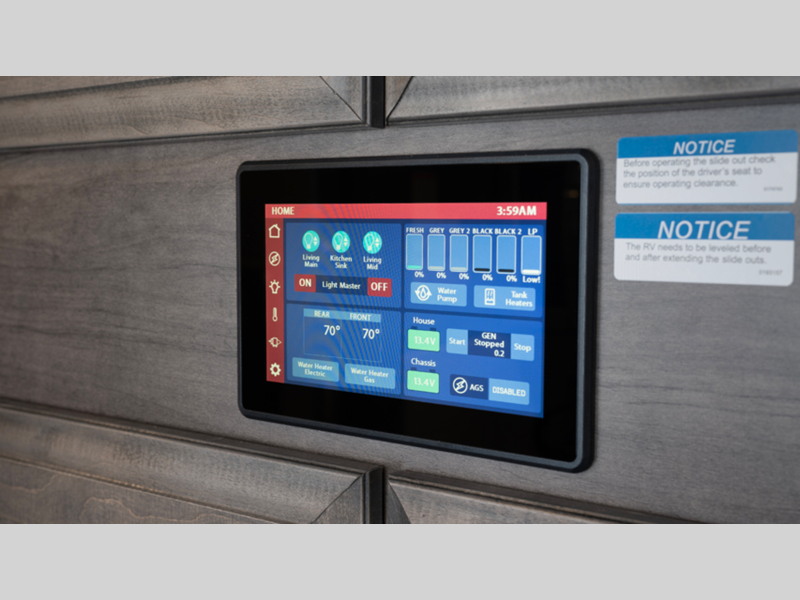

- Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
- 84 in. interior ceiling height with padded vinyl ceiling
- High-intensity recessed LED ceiling lights
- LED-lit hardwood fascia
- Hardwood cabinet doors and drawer fronts

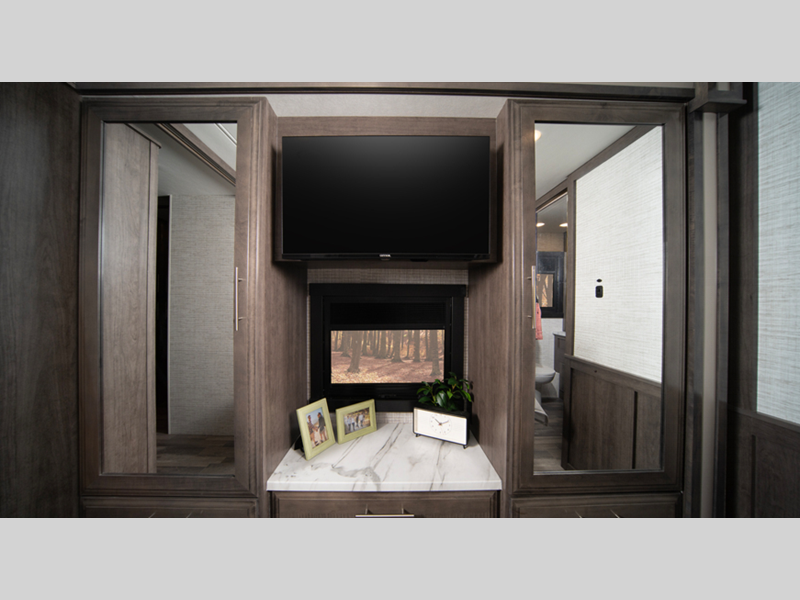

- Electric fireplace (34B, 34G , 36C)
- Bunks with industry-exclusive, 300 lb. capacity each (36A); Wall-mounted tablet holder in each bunk (36A)

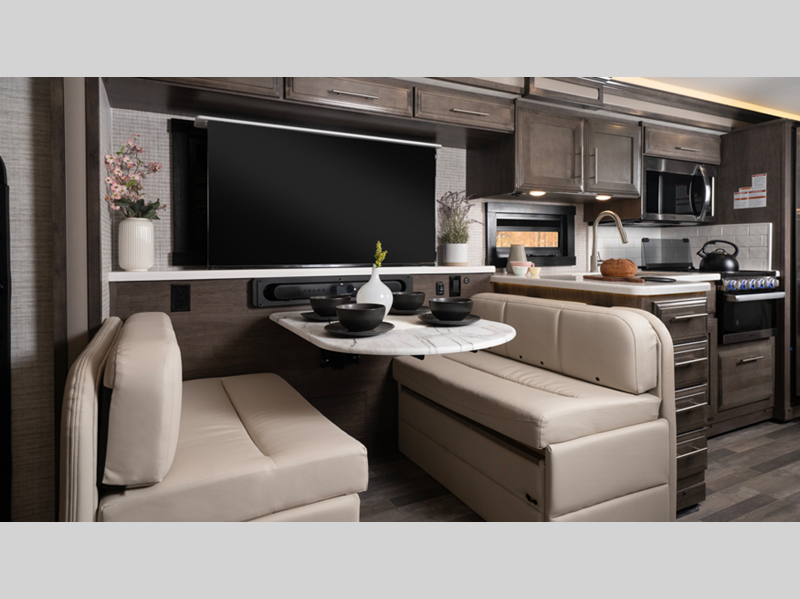

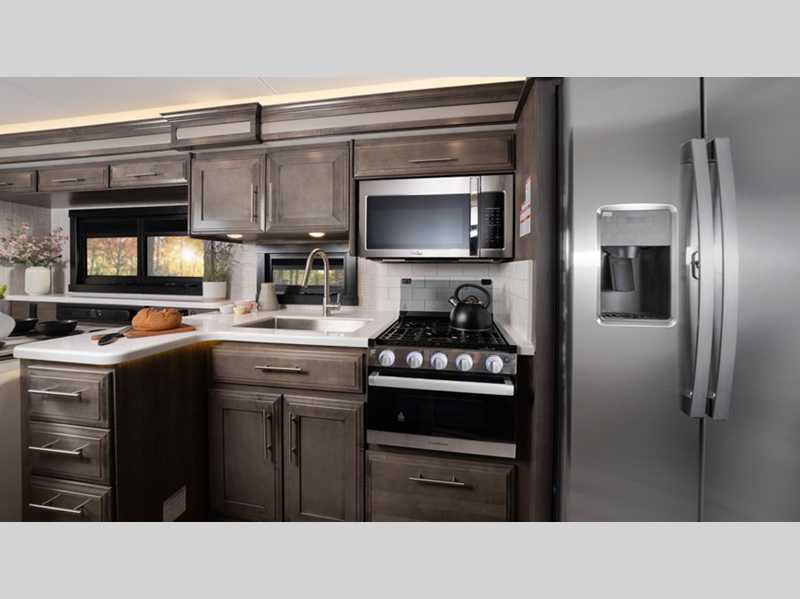

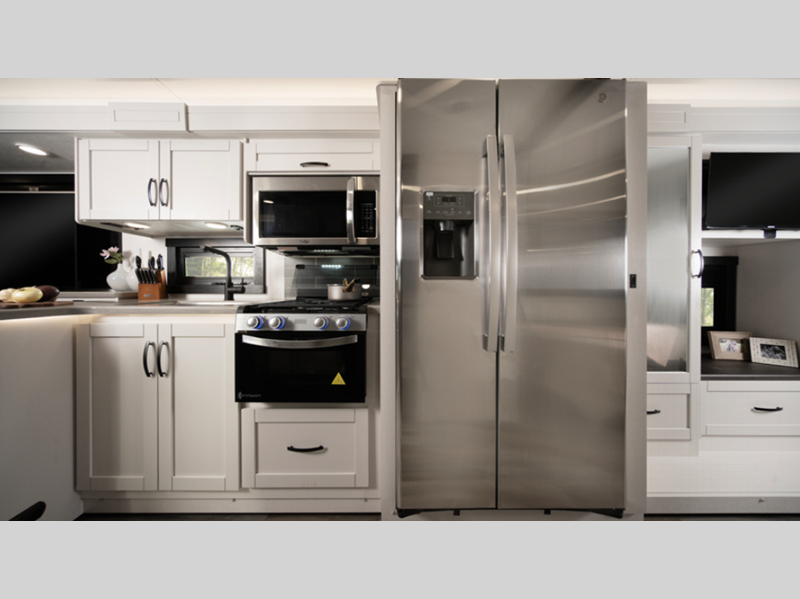

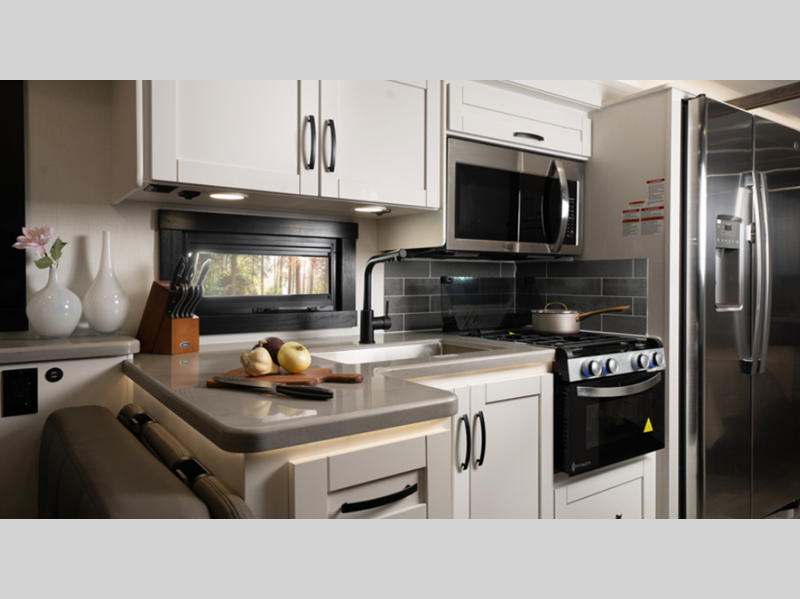

Kitchen
- LED-lit, solid-surface kitchen countertops
- Recessed stainless steel sink and sink covers
- Ball-bearing drawer guides
- Entegra-exclusive, easy-operation legless dinette table; Car seat tethers (select floorplans)

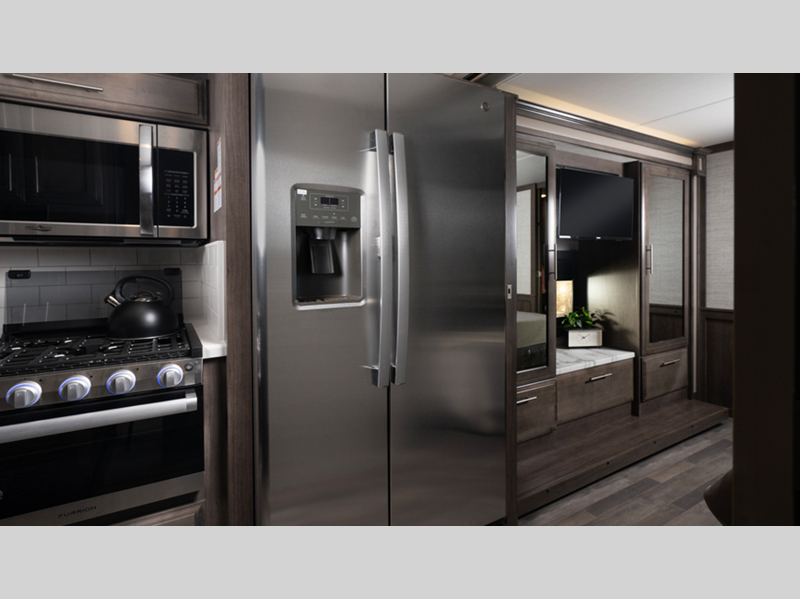

- Residential refrigerator
- Furrion® all-in-one cooktop and oven
- Residential-size microwave
- Decorative kitchen backsplash

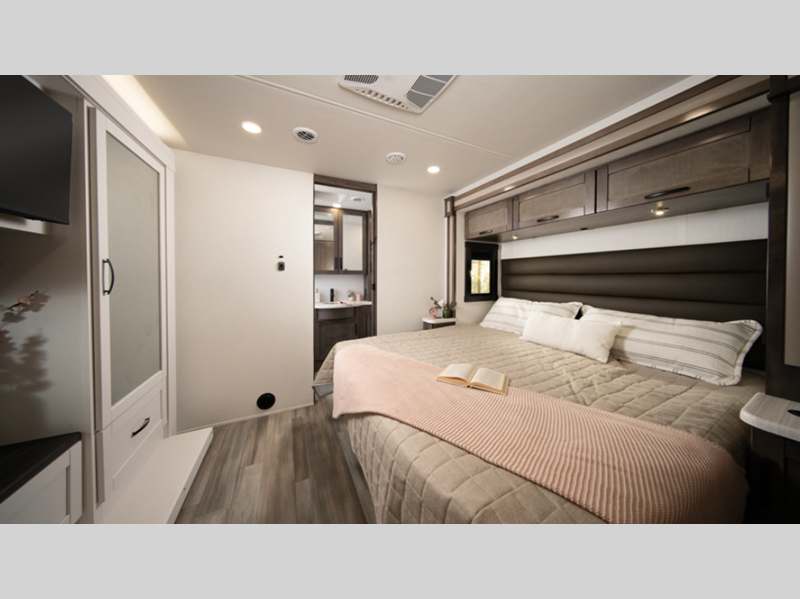

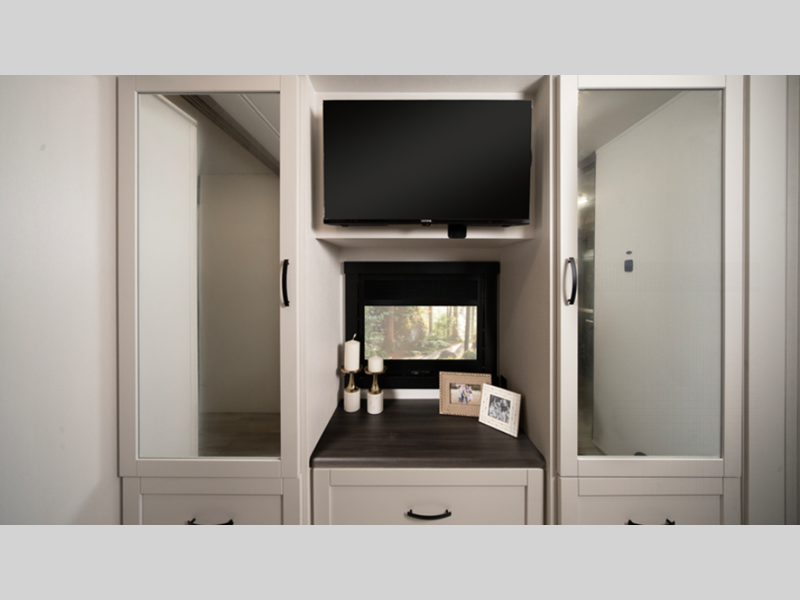

Bedroom

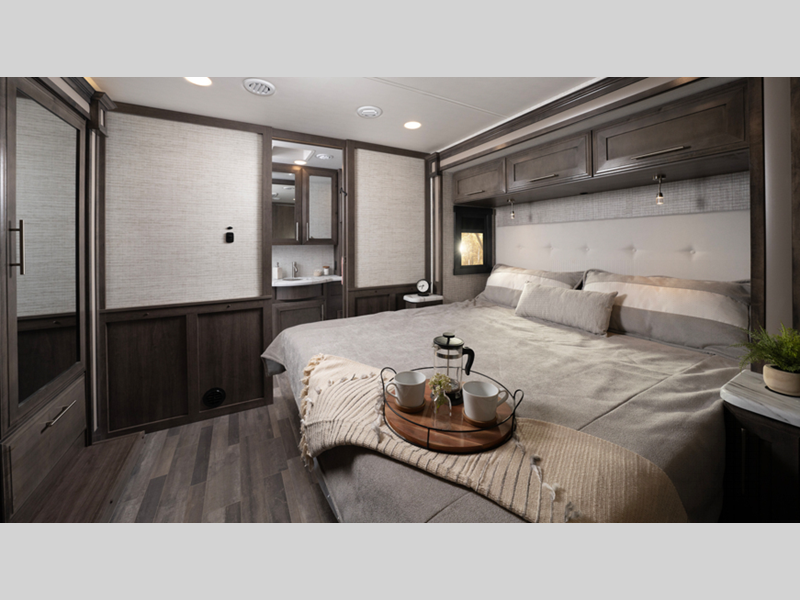

- Walk-around King-size bed with bedspread and nightstands
- USB port and wireless charging in nightstands
- Under-bed storage (select models)
- LED HD Smart TV in bedroom
- Large wardrobes

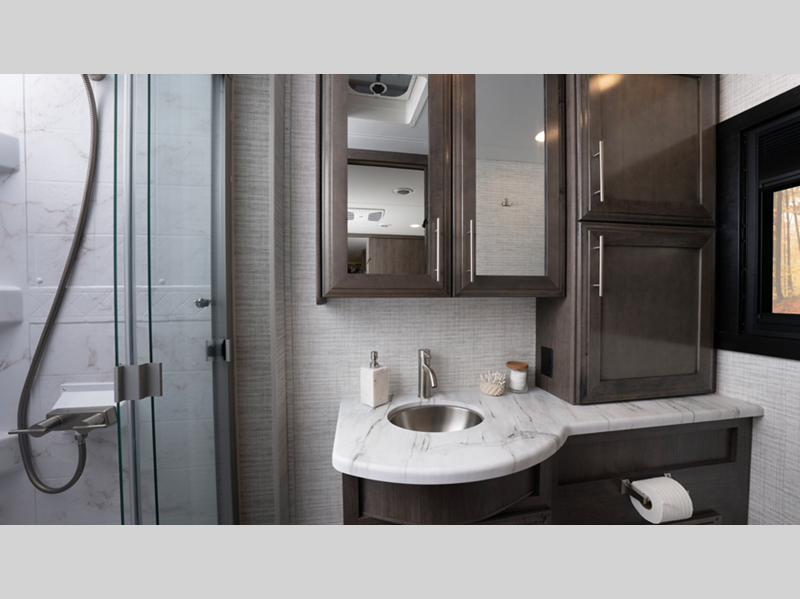

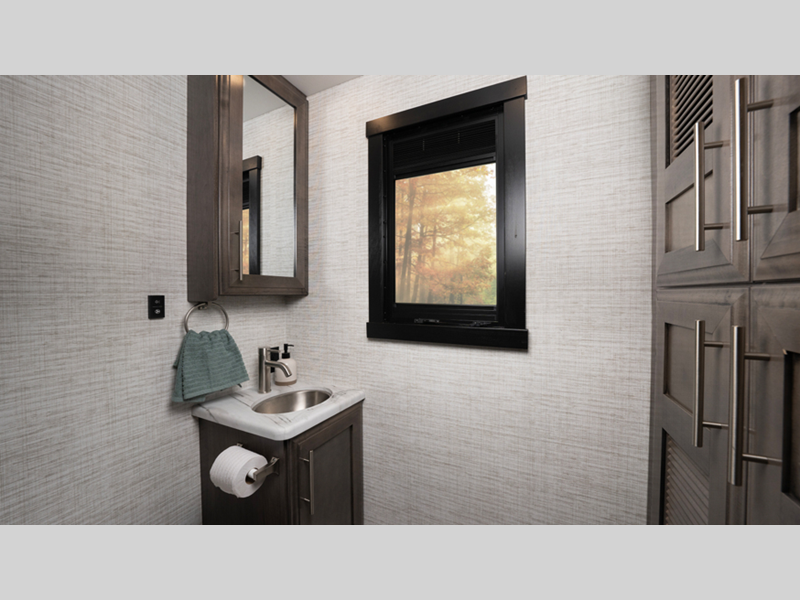

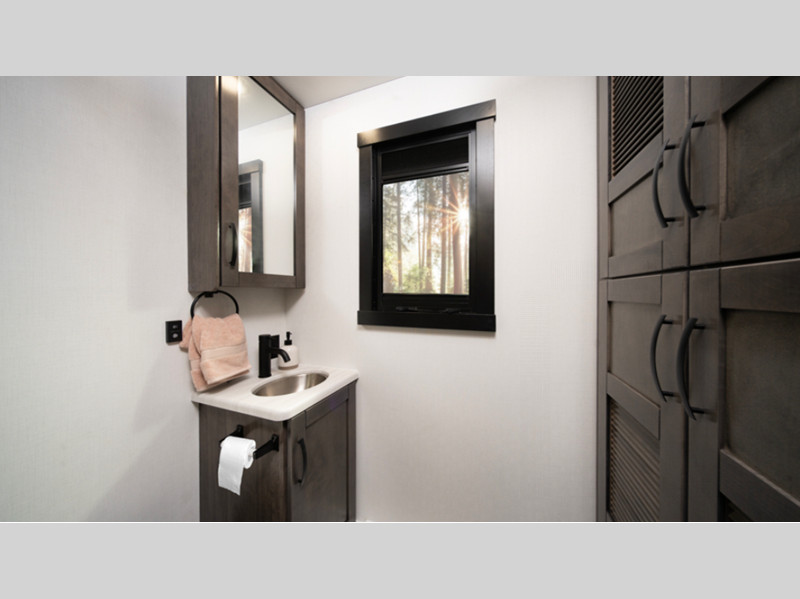

Bathroom

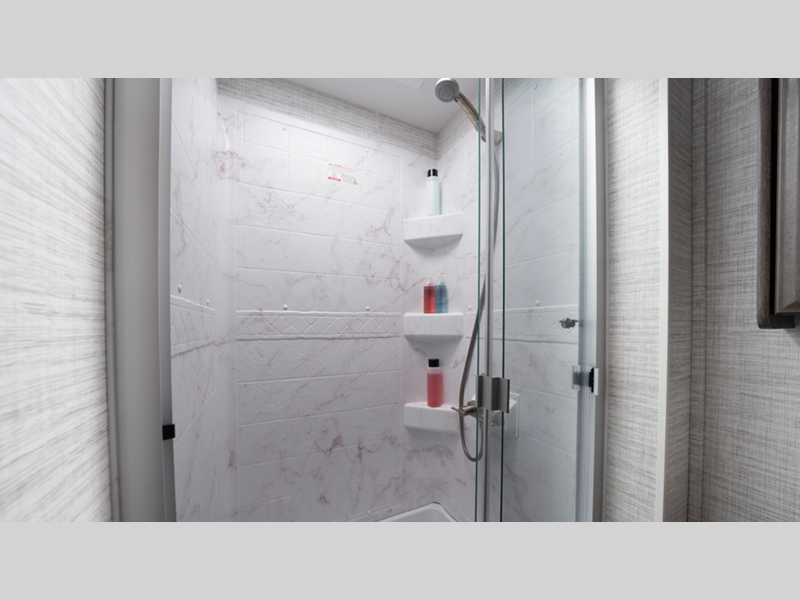

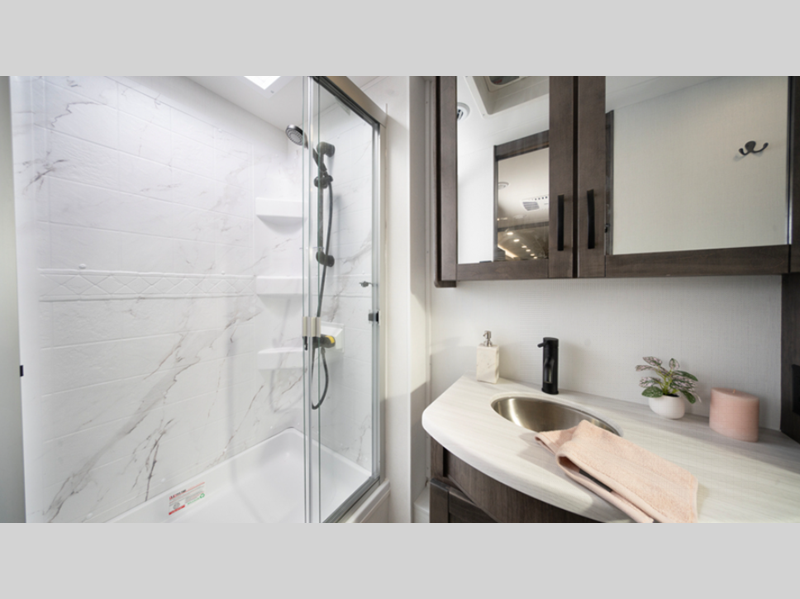

- Shower with decorative surround, glass door, skylight and light
- Recessed stainless steel bathroom sink
- Porcelain toilet with foot flush
- Powered roof vent in bathroom with wall switch
Safety
- 2-point lap safety belts in all designated seating locations
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Options

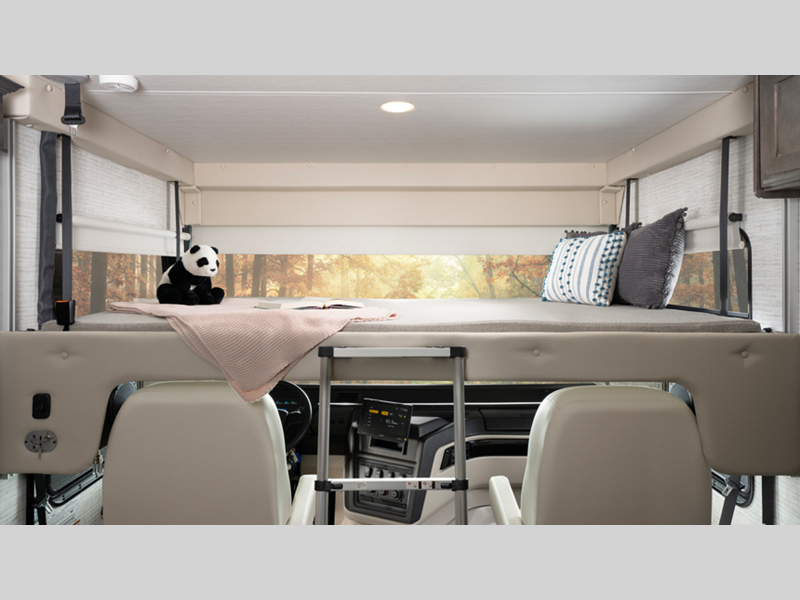

- Drop-down overhead bunk in cab area with 750 lb. capacity

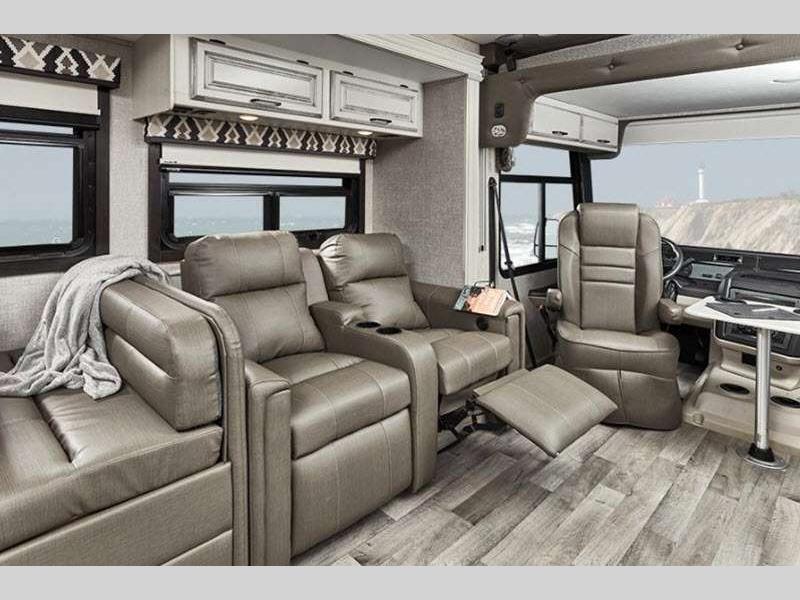

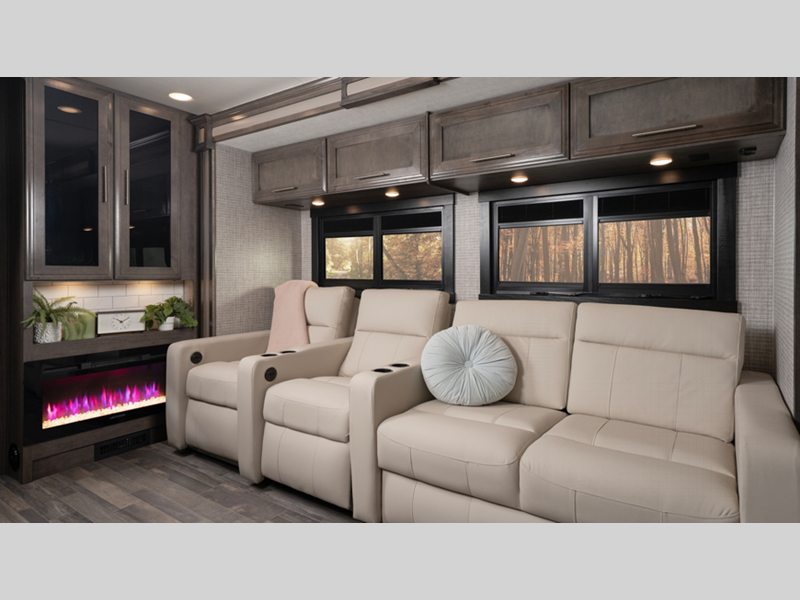

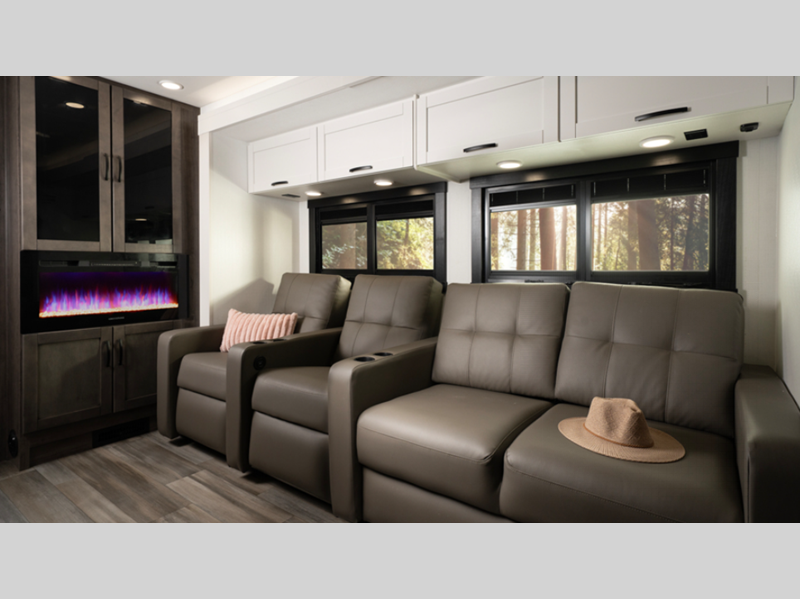

- Power theater seating (36A) (STD 34G, 36C)
- 15 cu. ft. 12V refrigerator
- Combination washer/dryer (34B, 34G, 36A)
- Stackable washer/dryer (36C)
- E-Z Drive™ Elite; 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit; Exterior entertainment center; Electric patio awning with LED lights; Slideout cover awnings; Onan® 5,500W generator; 1,200W inverter; 50-amp electrical service; 10 gal. gas/electric water heater; Sony® infotainment center; Backup and side-view cameras; Removable driver/passenger cockpit table; LED-lit solid-surface countertops, LED HD Smart TV in living area; Integrated day/night cassette shades
- Canadian standards
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
