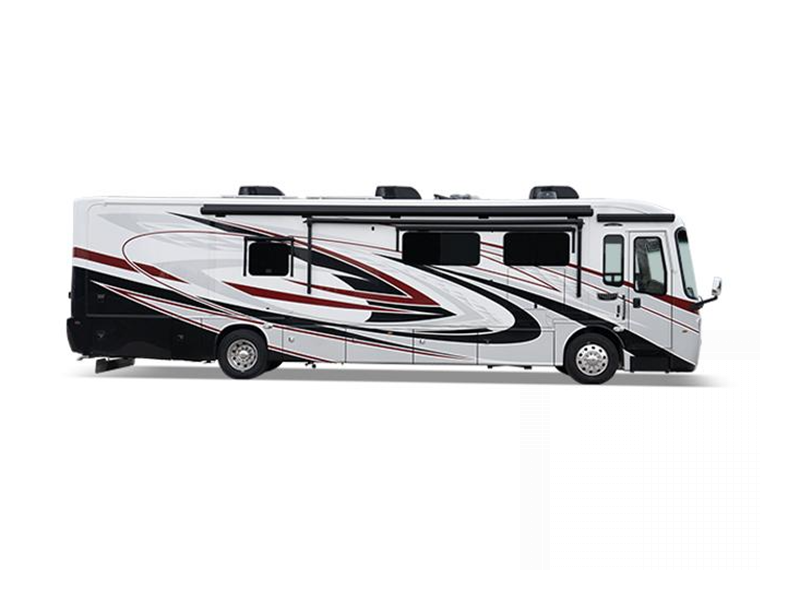

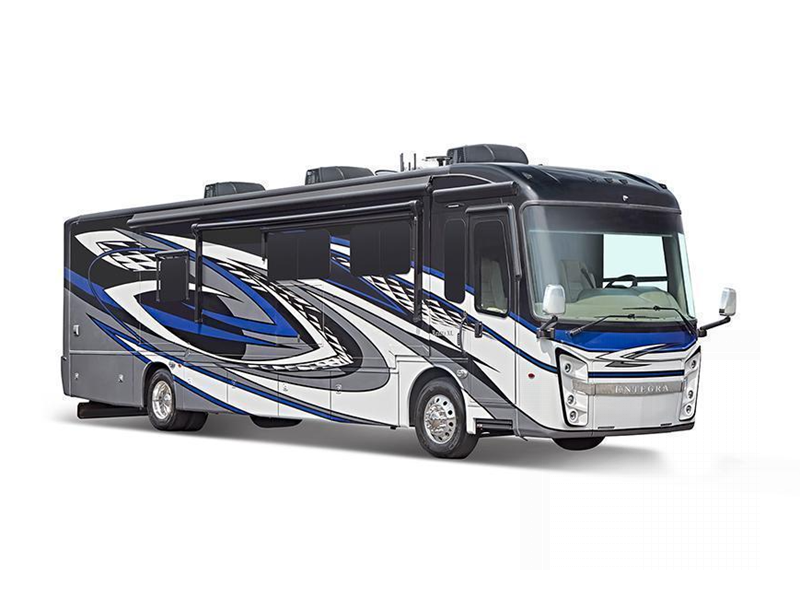

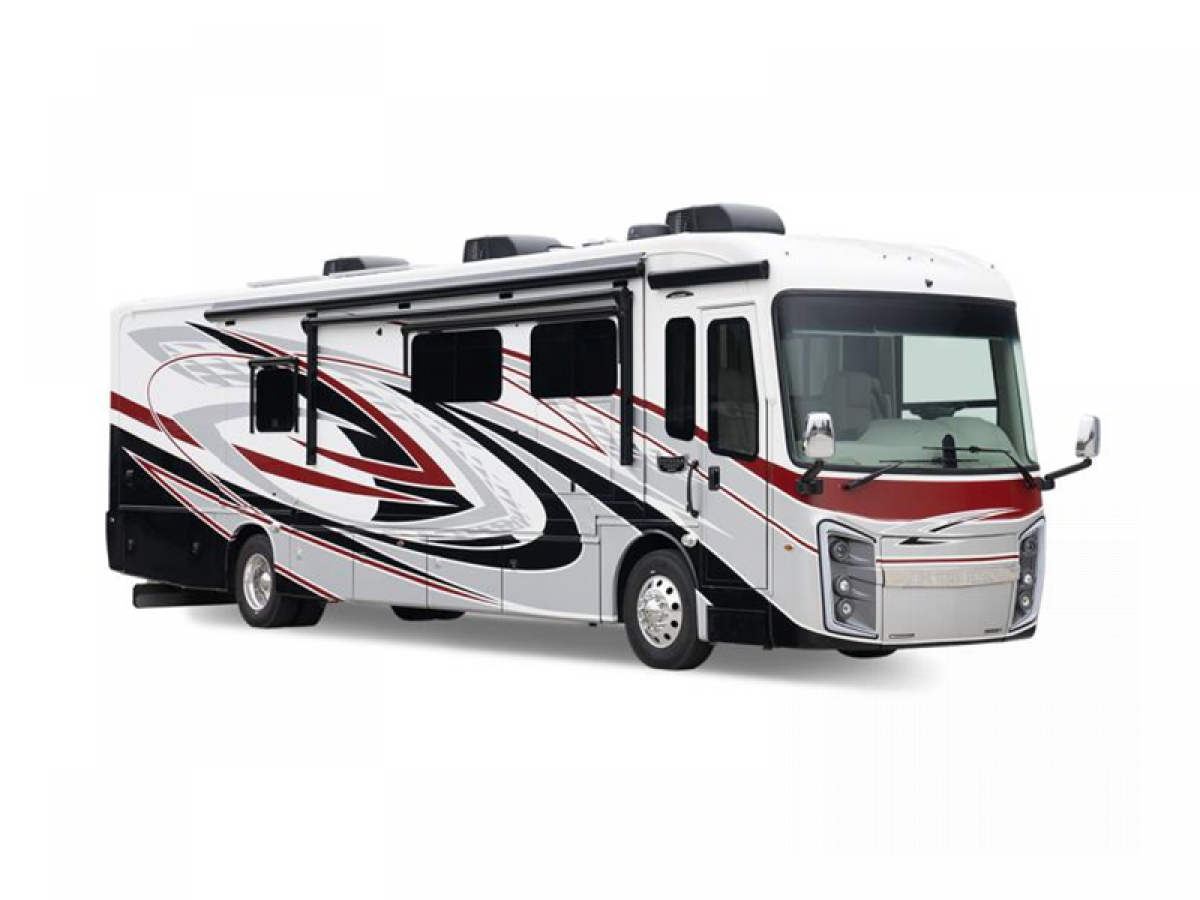

Entegra Coach Reatta XL Motor Home Class A - Diesel RVs For Sale
Superior quality, luxurious features, and functionality; it has to be the Reatta XL by Entegra Coach. This all-electric Class A diesel motorhome will have you feeling right at home wherever you decide to travel. The impressive Spartan K2 chassis and Cummins 380 HP engine provide unmatched power and the best handling in its class!
Some of the luxury touches inside include a 15" digital dash with an integrated 360 degree camera, 6-way adjustable and power leather captain's seats, and the largest windshield in the industry, and that's just within the cockpit! There are also hand-laid, woodgrain porcelain tiled floors, solid surface countertops, Italian leather furniture, and many more luxuries. The exterior is just as impressive with its (2) 200W Go Power! solar panels, heated basement storage, Carefree awnings, and an exterior entertainment center!
When you want to travel in luxury, choose a Reatta XL Class A diesel motorhome by Entegra Coach and you can't go wrong!
-
Reatta XL 37K
Entegra Coach Reatta XL Class A diesel motorhome 37K highlights: Four Slide Outs ... more about Reatta XL 37K
Have a question about this floorplan? Contact Us
Specifications

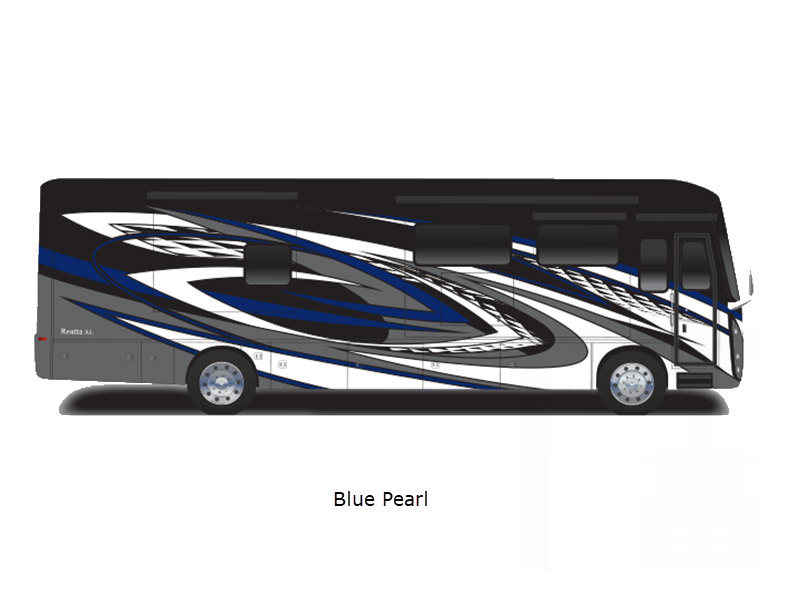

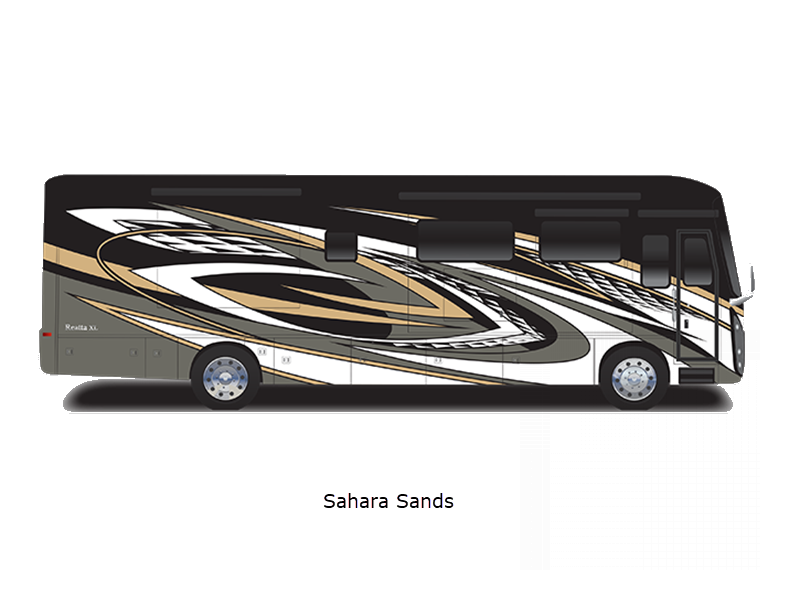

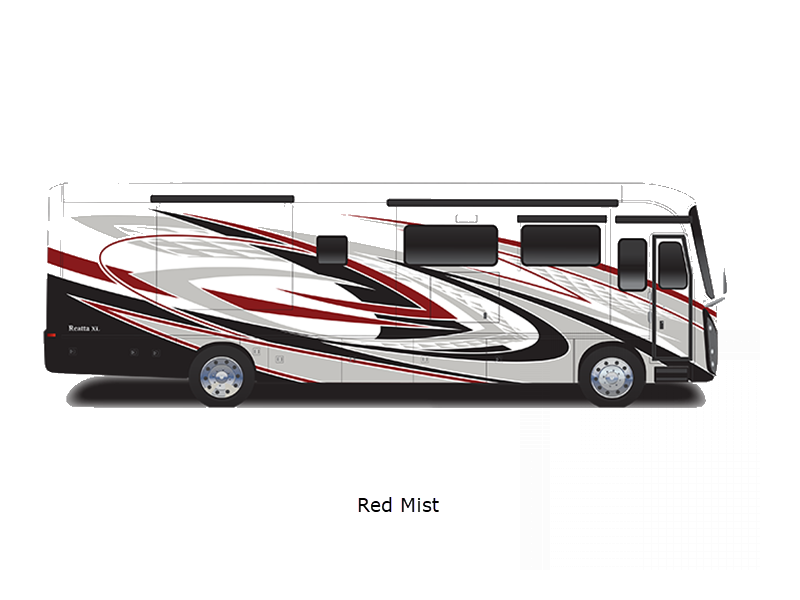

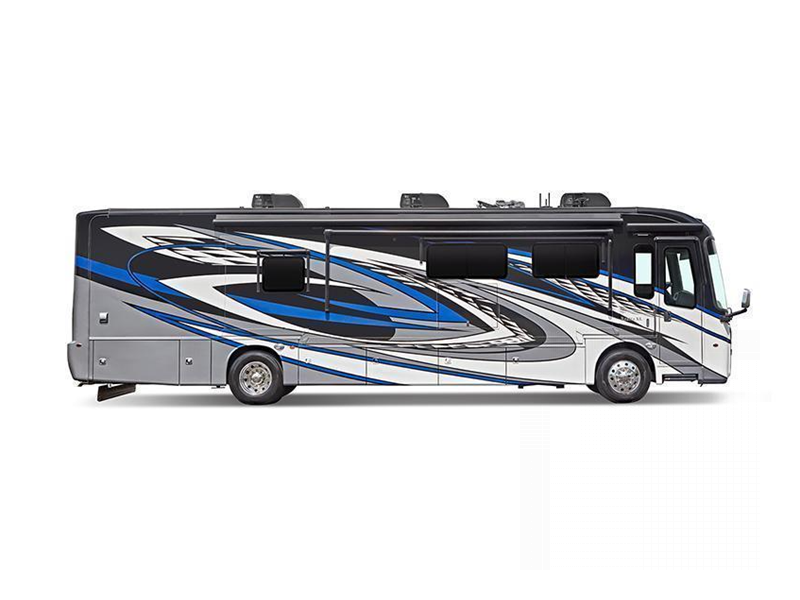

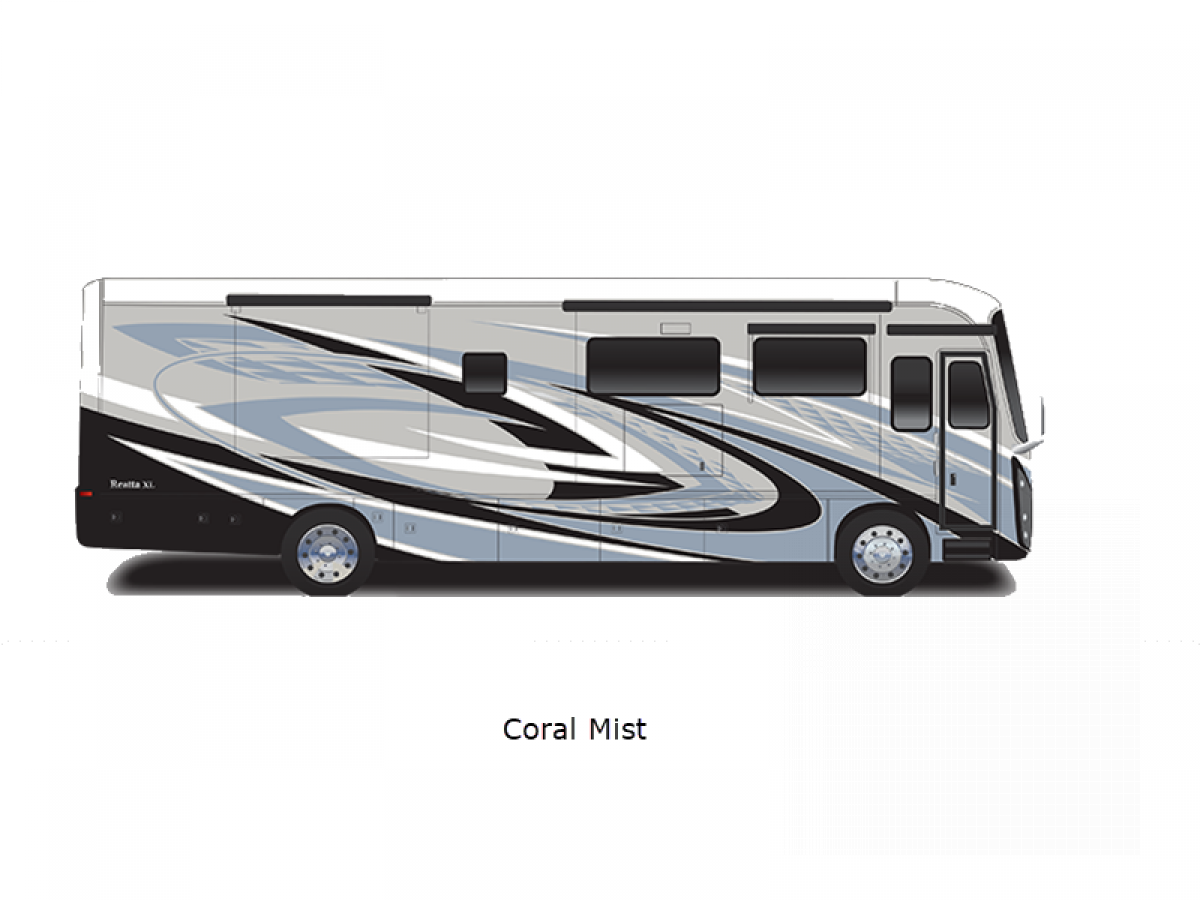

Sleeps 4 Slides 4 Length 37 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 11 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Pearl, Coral Mist, Red Mist, Sahara Sands Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 230 in Available Beds King Torque 1150 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 36" x 36" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250D Hydronic AC BTU 30000 btu TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Exterior 43" 4K UHD Smart TV Awning Info Carefree Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 39BH
Entegra Coach Reatta XL Class A diesel motorhome 39BH highlights: Full-Wall ... more about Reatta XL 39BH
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 11 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Pearl, Coral Mist, Red Mist, Sahara Sands Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 255 in Number Of Bunks 2 Available Beds King Torque 1150 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250D Hydronic AC BTU 45000 btu TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Exterior 43" 4K UHD Smart TV Awning Info Carefree Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 39T2
Entegra Coach Reatta XL Class A diesel motorhome 39T2 highlights: Triple Slides ... more about Reatta XL 39T2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 39 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 11 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Pearl, Coral Mist, Red Mist, Sahara Sands Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 255 in Available Beds King Torque 1150 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 30" x 40" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250D Hydronic AC BTU 45000 btu TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Exterior 43" 4K UHD Smart TV Awning Info Carefree Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Reatta XL 40Q2
Entegra Coach Reatta XL Class A diesel motorhome 40Q2 highlights: Power Theater ... more about Reatta XL 40Q2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 3 Length 40 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 11 in Int Height 7 ft Interior Color Glacier, Summit, Valley Exterior Color Blue Pearl, Coral Mist, Red Mist, Sahara Sands Hitch Weight 10000 lbs GVWR 36320 lbs Fresh Water Capacity 100 gals Grey Water Capacity 62 gals Black Water Capacity 41 gals Tire Size 275/80R 22.5" Furnace BTU 40000 btu Generator Onan 10,000 Watt Diesel Fuel Type Diesel Engine Cummins L9 Turbocharged Chassis Spartan K2 Raised Rail Horsepower 380 hp Fuel Capacity 100 gals Wheelbase 267 in Available Beds King Torque 1150 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 40" x 30" Number of Awnings 1 Axle Weight Front 14320 lbs Axle Weight Rear 22000 lbs Water Heater Type Aqua Hot 250D Hydronic AC BTU 45000 btu TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Exterior 43" 4K UHD Smart TV Awning Info Carefree Power with LED Lights Washer/Dryer Available Yes Gross Combined Weight 46320 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Manu-Facts:
In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.
We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.
In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry.
So from the moment you drive off the lot, you're not only an owner—you're a member of the family
FEATURES AND BENEFITS
Standard Features (2025)
Chassis
- Equalizer hydraulic automatic coach leveling
- Wireless tire pressure monitoring system (TPMS) with temperature monitoring
- Spartan® K2 raised-rail chassis
- Cummins® L9 turbocharged 380 HP engine with 1,150-lb. ft. torque at 1,400 RPM
- Allison® 3,000 MH 6-speed transmission
- Rear-mounted radiator
- 170-amp alternator
- 1,000-watt engine block heater
- Variable geometry turbo (VGT) engine brake
- Front axle- 14,320 lb. rating
- Independent front air suspension (IFS) front axle - 14,320 lb. rating
- Rear axle - 22,000 lb. rating
- 4.88 rear axle ratio
- Michelin® 275/80R 22.5” tires
- Bilstein® 46mm shocks
- Remote air connection
- (2) 12V chassis batteries
- 100-gal. fuel tank
- 10-gal. DEF tank
- Spartan® Safehaul tow vehicle air brake system
- 10,000-lb. hitch with 7-pin plug
Construction
- One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
- Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
- Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8 in. Structurwood® and 1/4 in. plywood
- X-Bridge™ bracing welded into chassis frame
- Heated basement storage
- Electric-powered slideout rooms
Heat, AC, Water & Power
- Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
- 2,000-watt pure sine wave inverter with 100-amp battery charger
- (3) 15,000 BTU A/C units with heat pumps [(2) 15,000 BTU units with heat pumps on 37K]
- (2) 200W Go Power!® solar panels
- Heated basement storage
- (2) L16 AGM batteries (6V/390 amp hrs. ea.)
- 50-amp power cord on electric powered reel
- Automatic transfer switch with surge protection

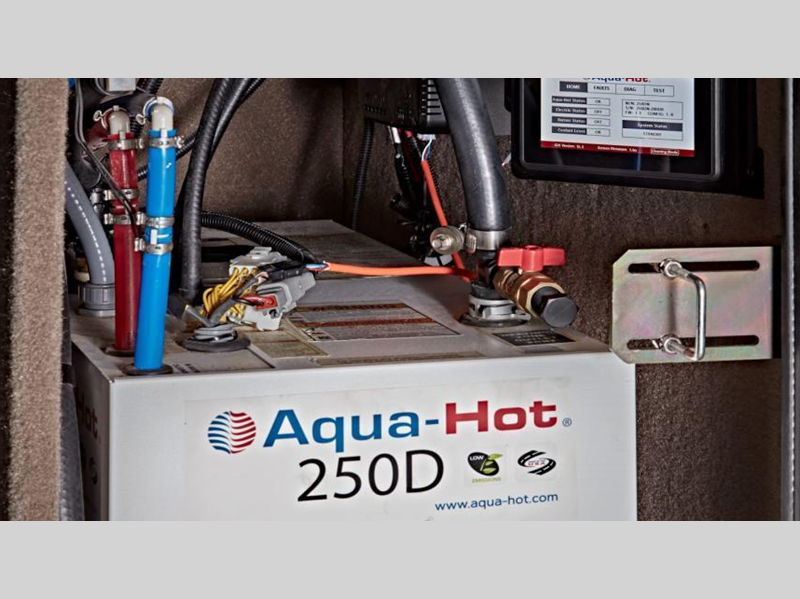

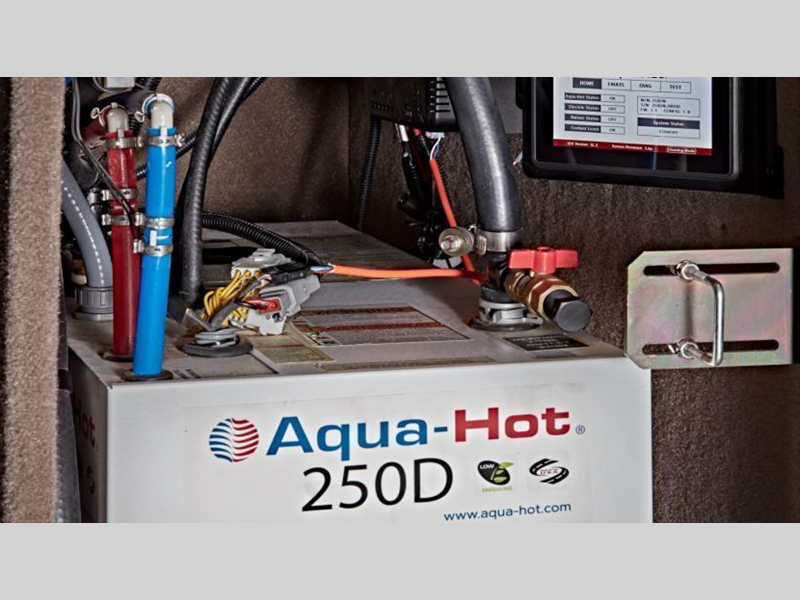

- Aqua-Hot® 250D hydronic water and heating system with 5 in. LED screen
- Electric radiant floor heating system
- Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
- Black holding tank sprayer
- City and tank water filtration system
- Hot and cold water hookup in front cap area with 30 ft. quick-disconnect hose
Exterior
- Winegard Connect 2.0 Wi-Fi/4G antenna
- Carefree® power patio awning with LED lights

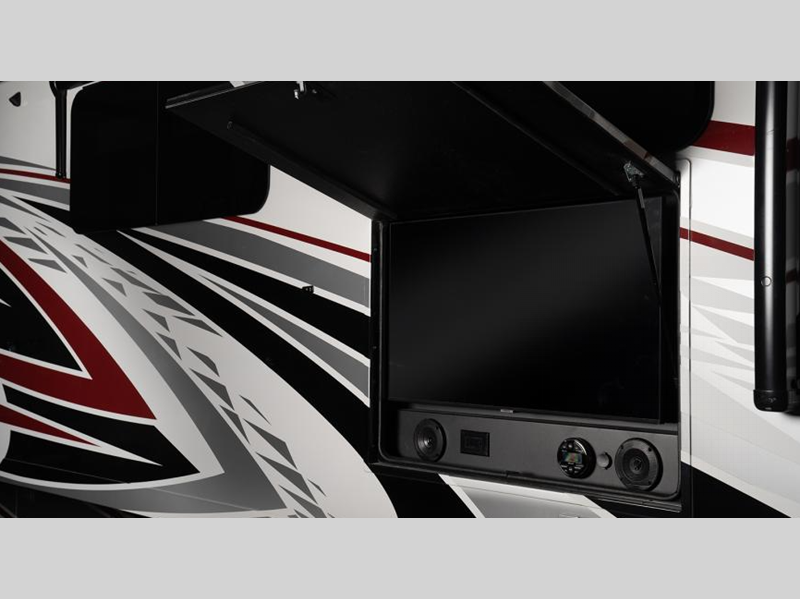

- Exterior 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; Exterior JBL® radio and speakers with USB port and receptacle
- Front/Rear Cap Insulated front and rear caps (R-24)
- Exterior utility center
- Carefree® power entrance door awning with LED lights
- Carefree® slideout awnings
- Frameless, dual-pane, tinted, safety-glass windows
- Grab handle and keypad system for keyless entry
- LED accent lights under all slideout rooms
- Heated, remote-control, side-view mirrors with integrated cameras
- Diamond Shield™ front protective film mask

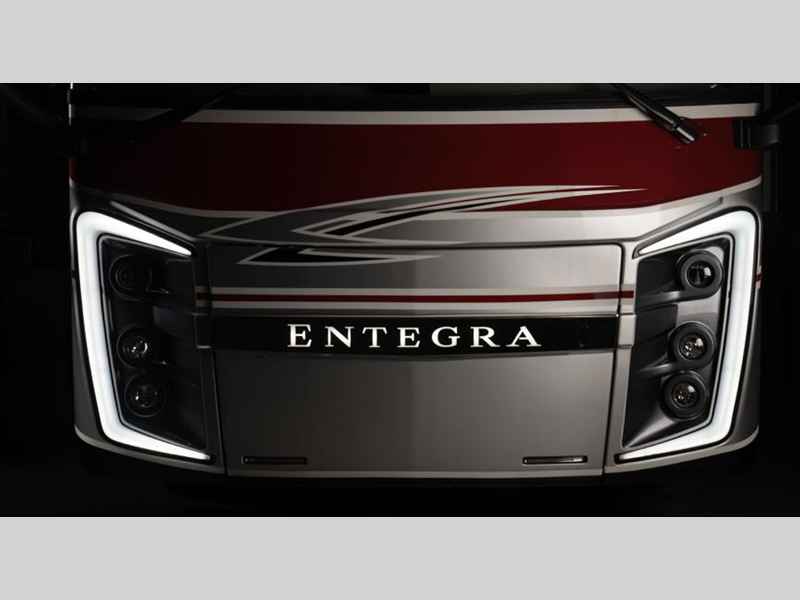

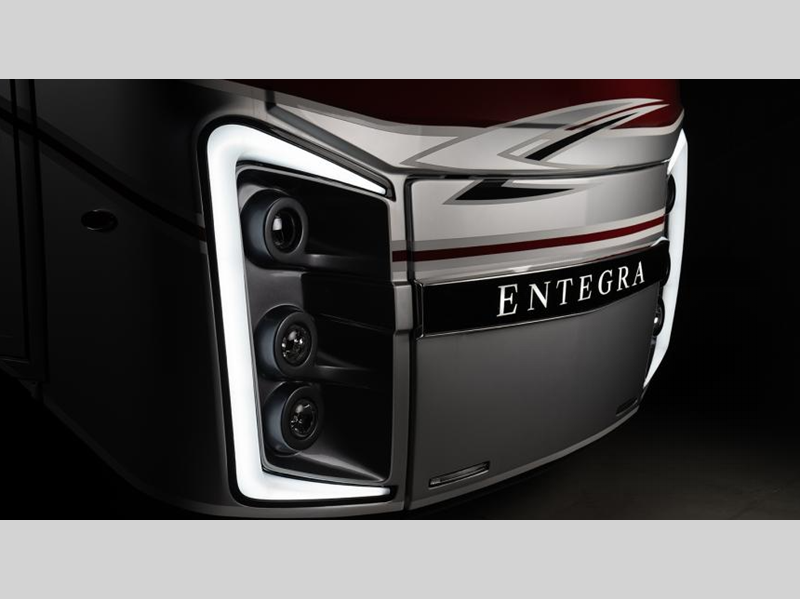

- LED high and low beam headlights
- Halogen fog lights
- Automatic daytime running lights
- LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
- Porch light
- Mudflap with chrome “Entegra Coach” nameplate
- Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
- Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option
- Slideout basement storage tray
- Sikkens custom full-body paint
- Removable screen on entry door

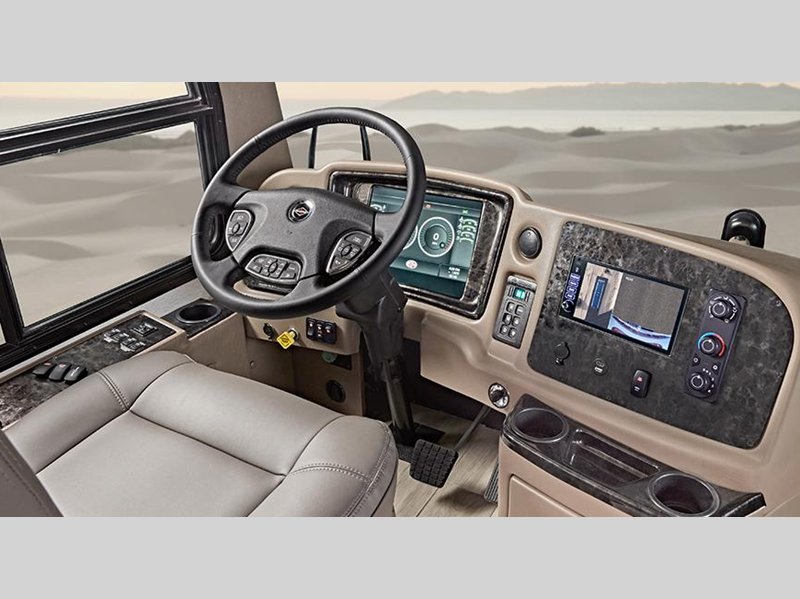

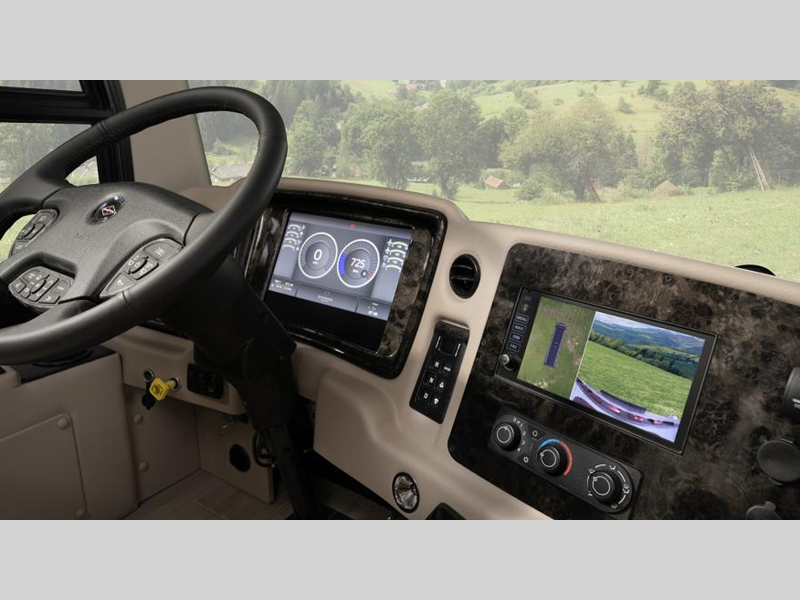

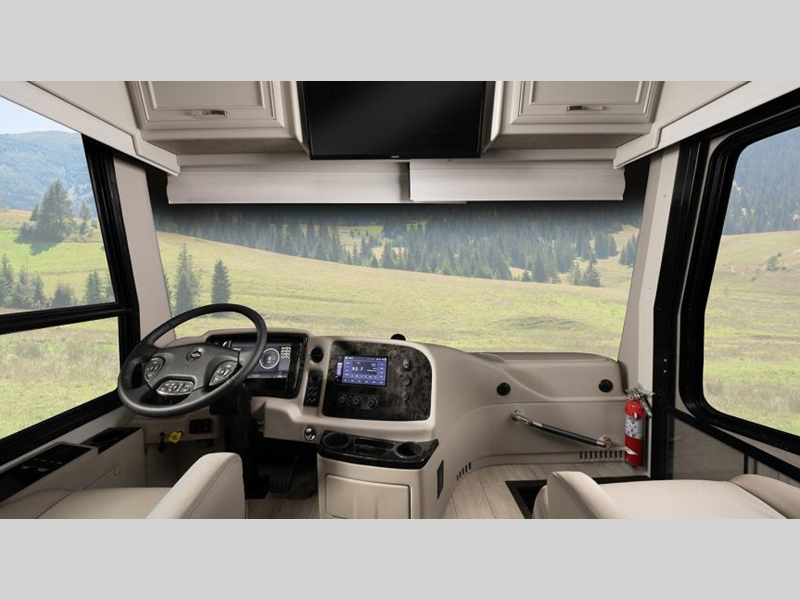

Cockpit
- Xite™ 360° HD digital camera system
- Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
- Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
- Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
- Manual tilt and telescoping steering column

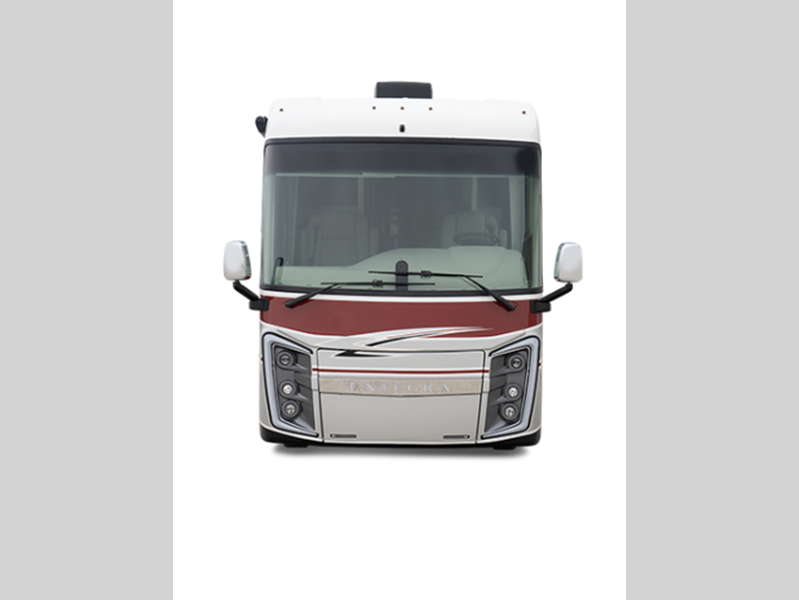

- Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
- Leather driver and passenger seats with powered 6-way adjustable and power recline
- Powered flush stepwell cover
- Powered adjustable brake and accelerator pedals
- Powered front sun visors and privacy shades

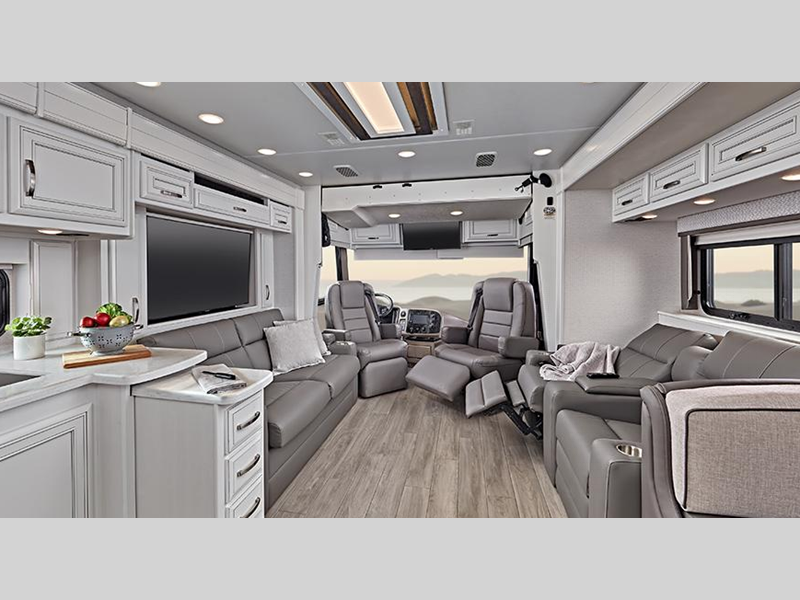

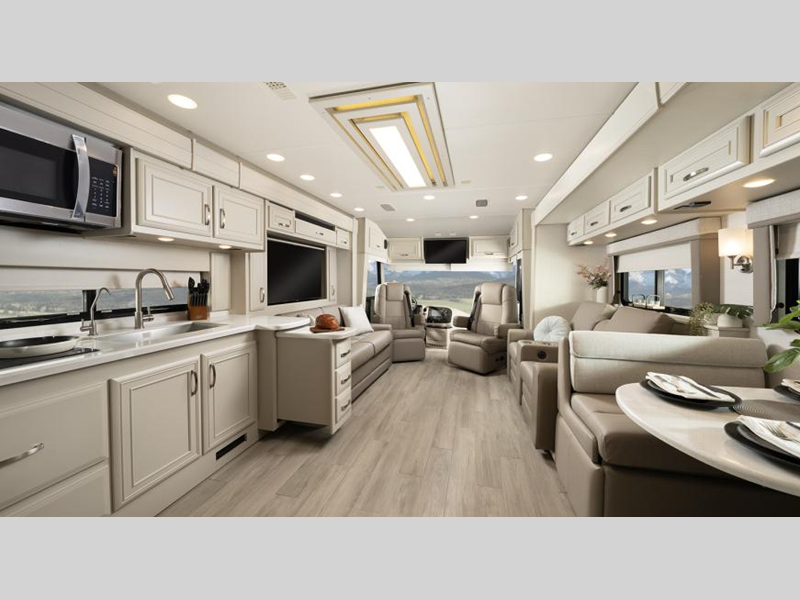

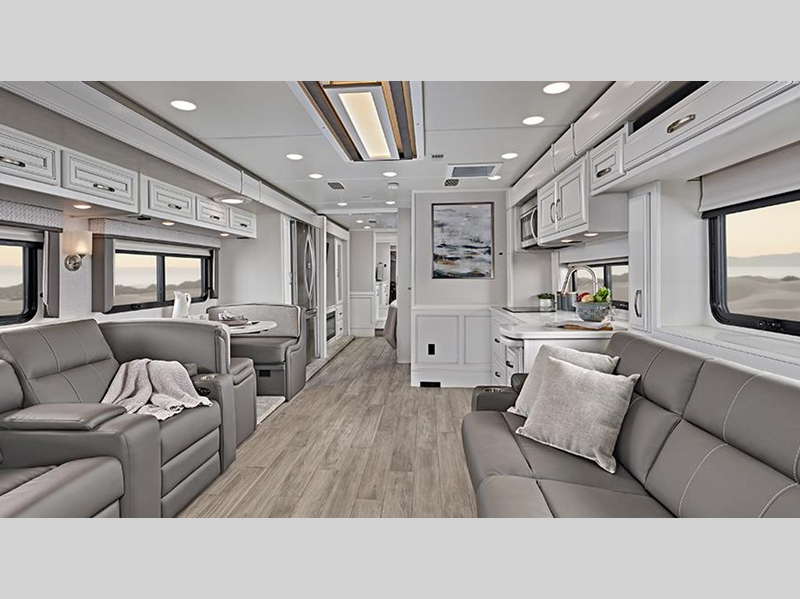

Interior
- Manual solar day shades and blackout night shades

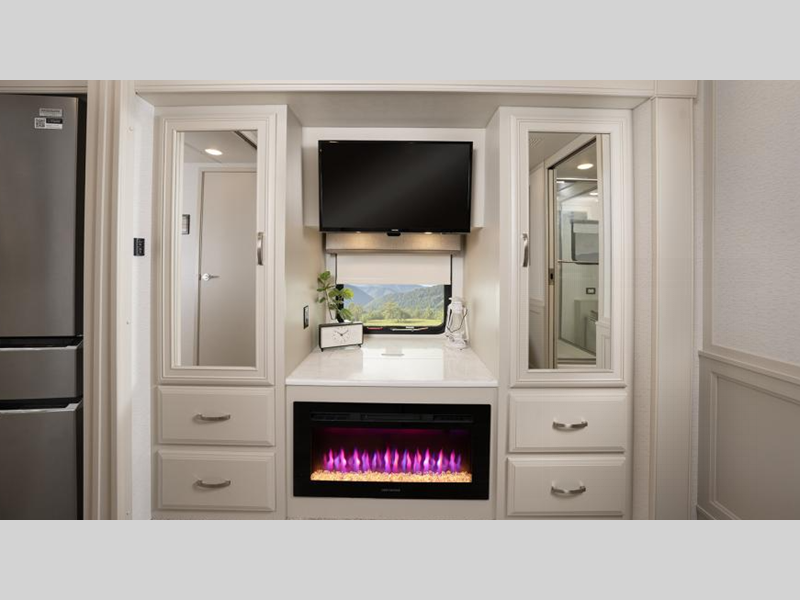

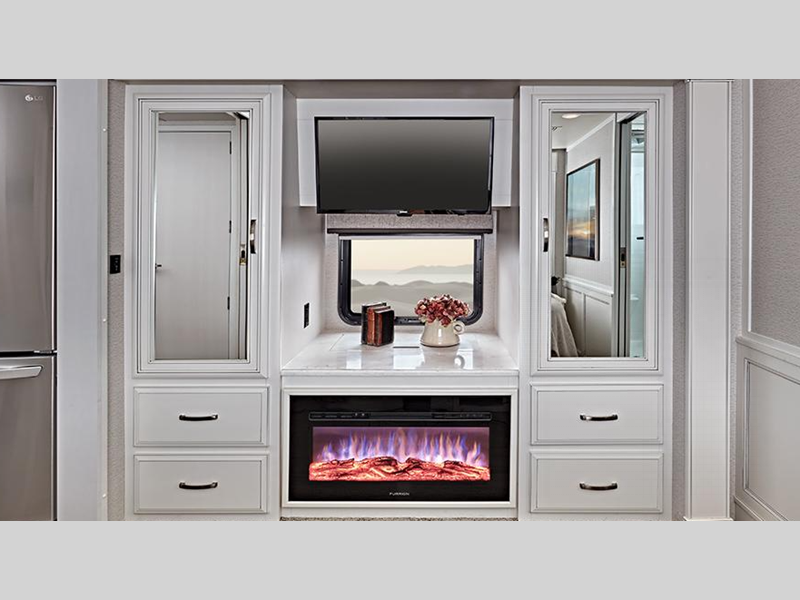

- LED-lit fireplace with 5,000 BTU heating element (37K only)

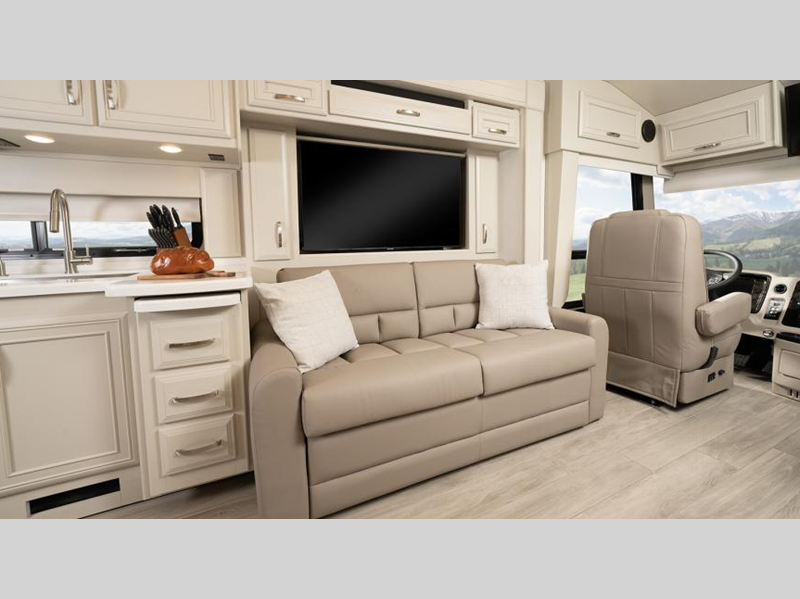

- 32 in. Samsung® LED 1080P Smart TV in front overhead
- Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available)
- 50 in. Samsung® 4K UHD Smart TV in Living Room
- Samsung® sound bar with subwoofer Living Room
- Sony® Blu-ray™ player
- Premium leather furniture

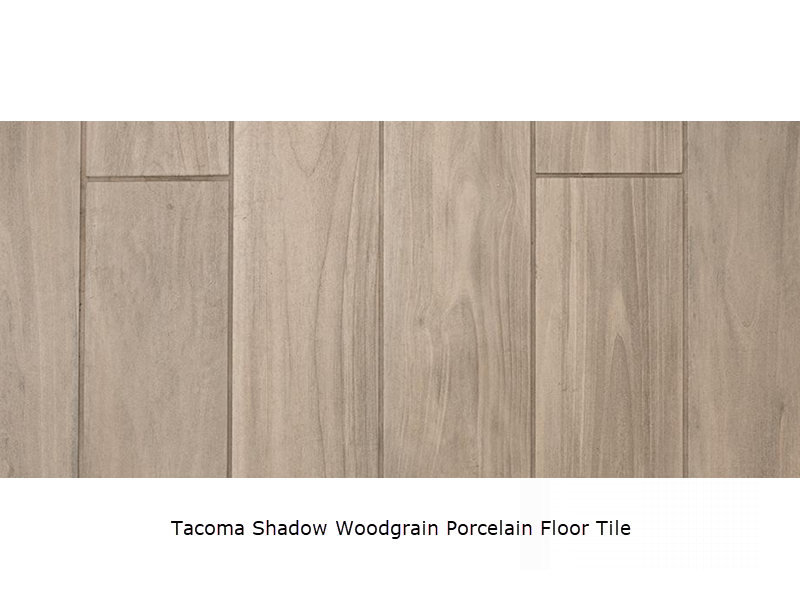

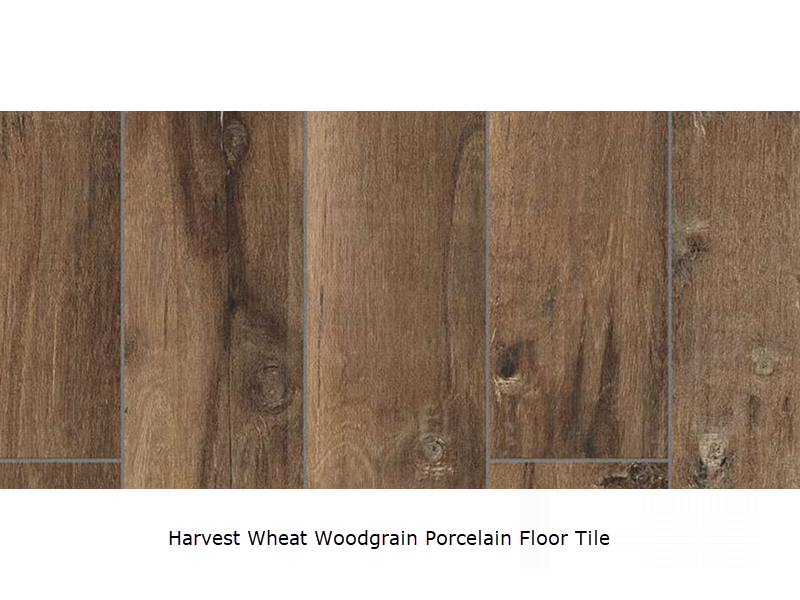

- Hand-laid, woodgrain porcelain tiled floors
- LED interior lighting
- Decorative ceiling feature with integrated accent lighting
- Portable Shark® vacuum cleaner
- Bunks with industry-exclusive 300 lb. capacity each (39BH)
- Splendid stackable washer and dryer

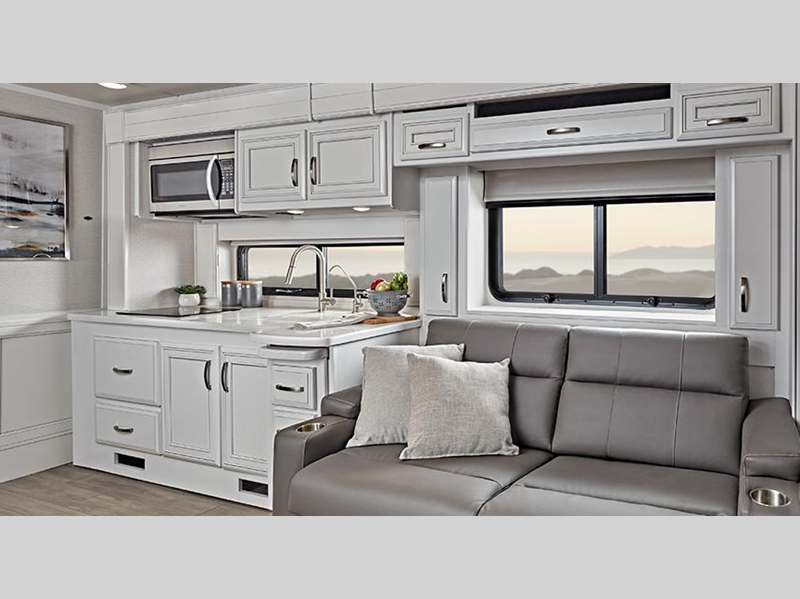

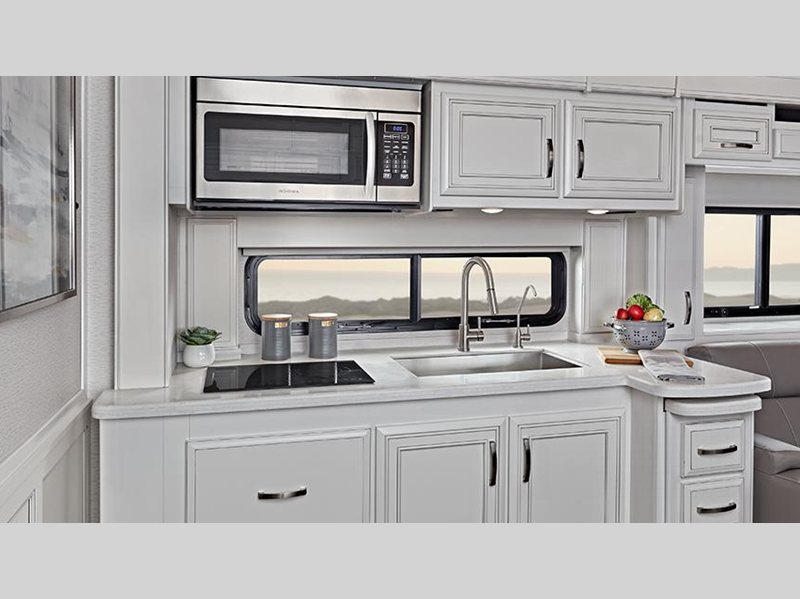

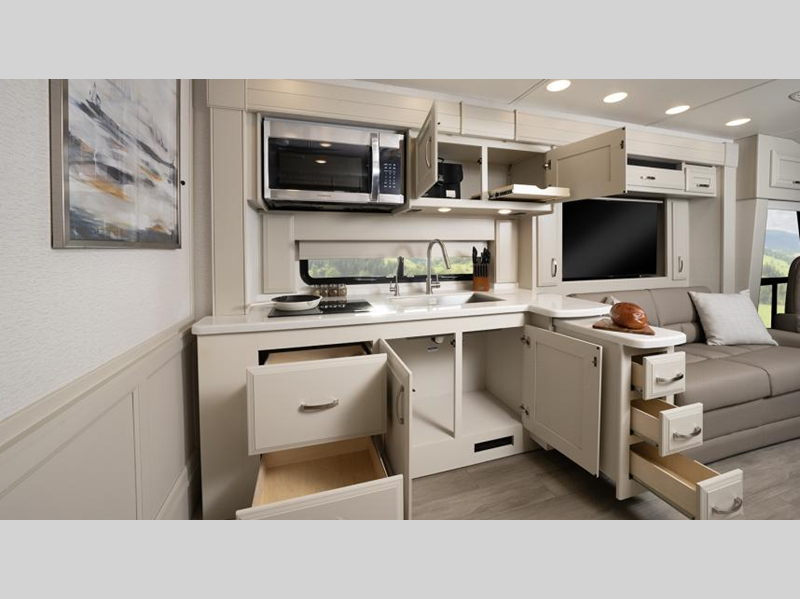

Kitchen
- Window with push out lever operation and screen

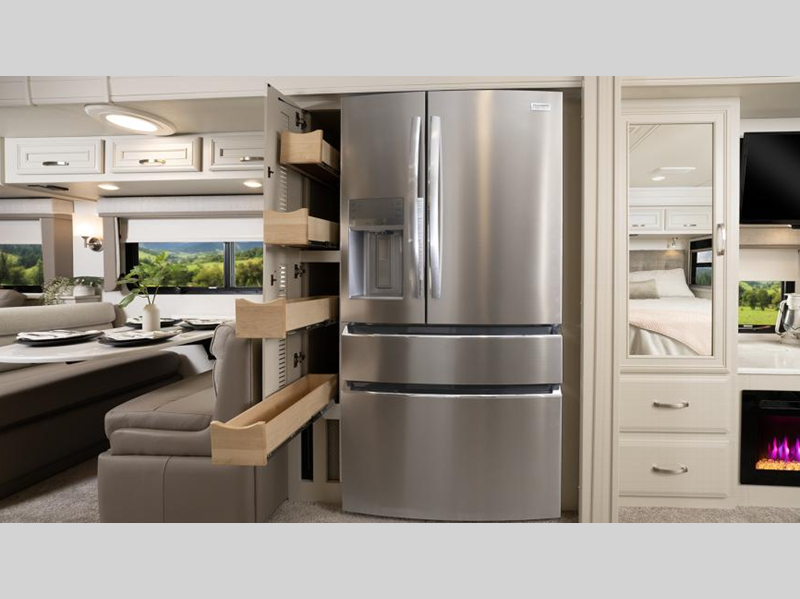

- Stainless steel residential refrigerator
- Induction cooktop
- 1.5 cu. ft. convection microwave oven
- Solid-surface countertops with Stainless steel sink
- Filtered water dispenser at kitchen sink
- Slide-out storage tray(s) in overhead cabinet
- Maxxair Deluxe power exhaust vent fan with intake in kitchen
Bedroom

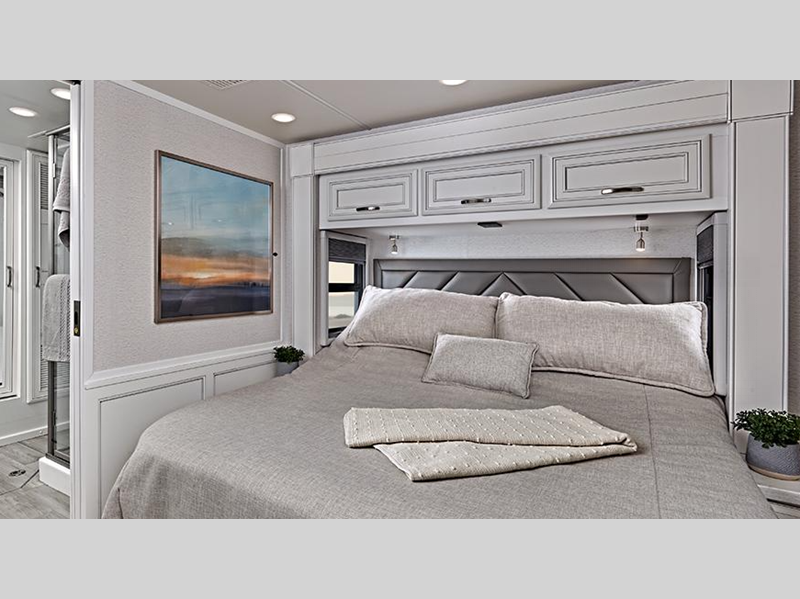

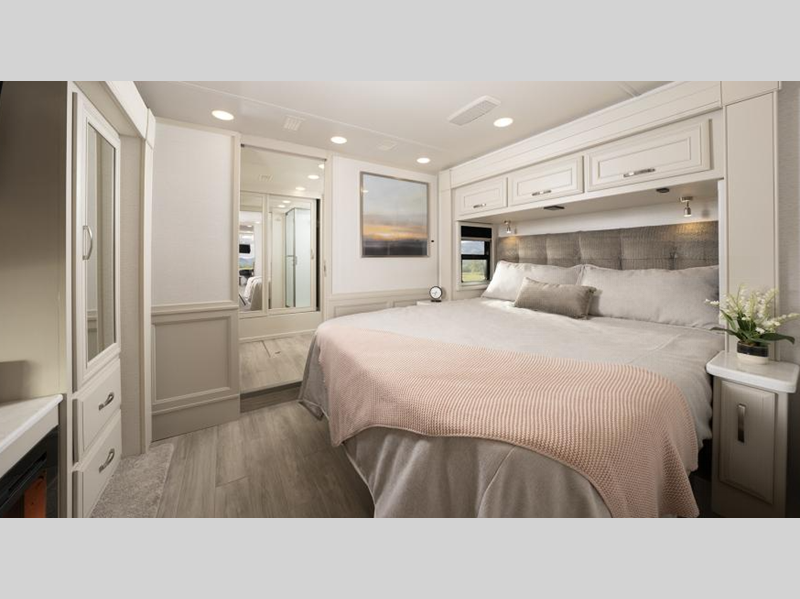

- King-size pillow-top mattress on tilt bed
- 32" Samsung® LED 1080P Smart TV
- Sony® Blu-ray™ player

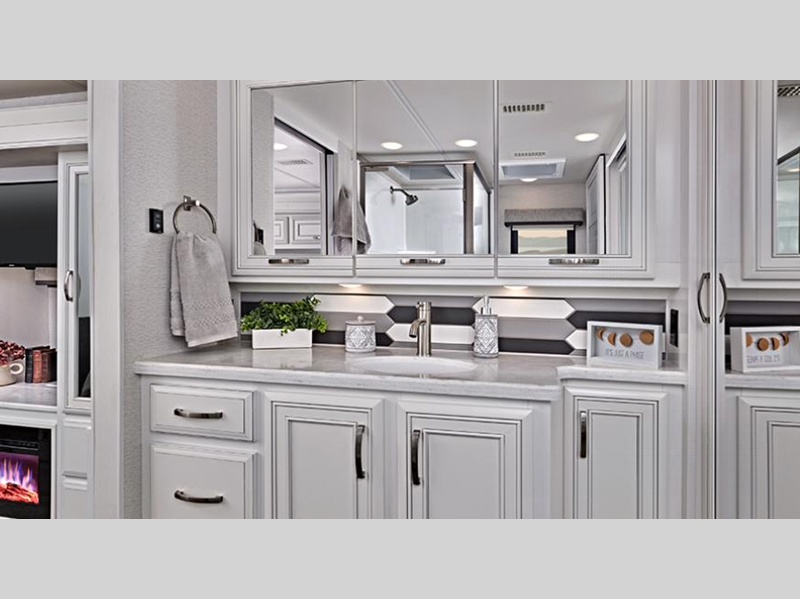

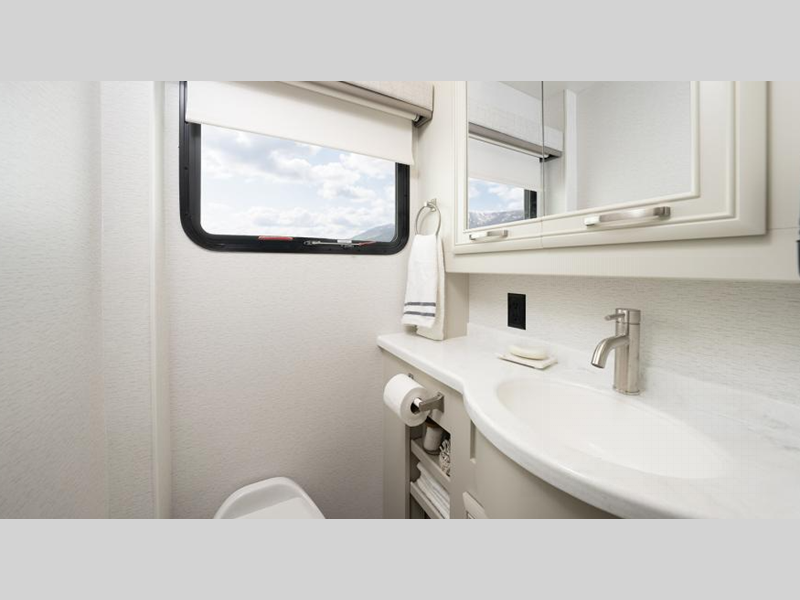

Bathroom

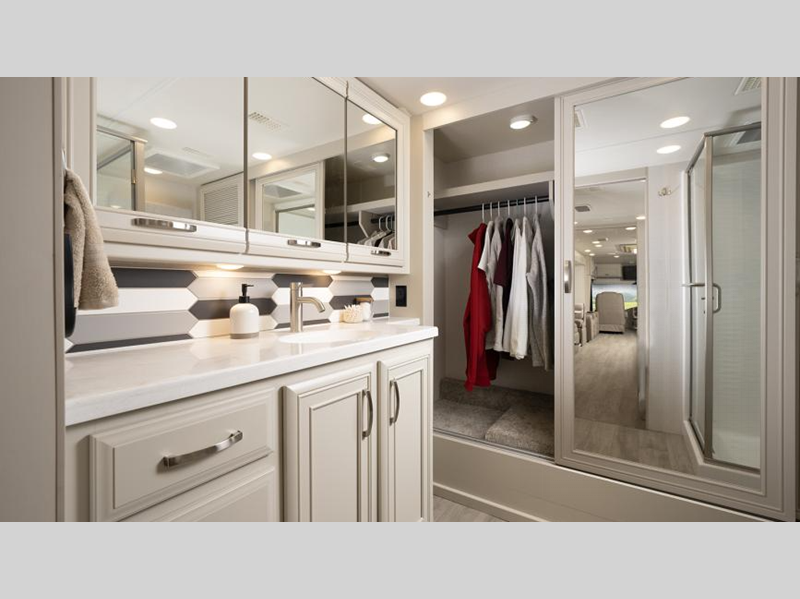

- Solid-surface countertops with Integrated sink
- One-piece fiberglass shower with skylight
- Aqua View SHOWERMI$ER™ water saving system
- Thetford® Aqua Magic toilet with foot flush
- Maxxair Deluxe power exhaust vent fan with intake in bathroom
Safety
- Porch light
- Carbon monoxide detector
- Smoke alarm
Options
- Theater seating with power recliners (39BH)
- Hide-a-bed ILO power theater seating (37K)
- Sofa ILO power theater seating (39T2, 40Q3)

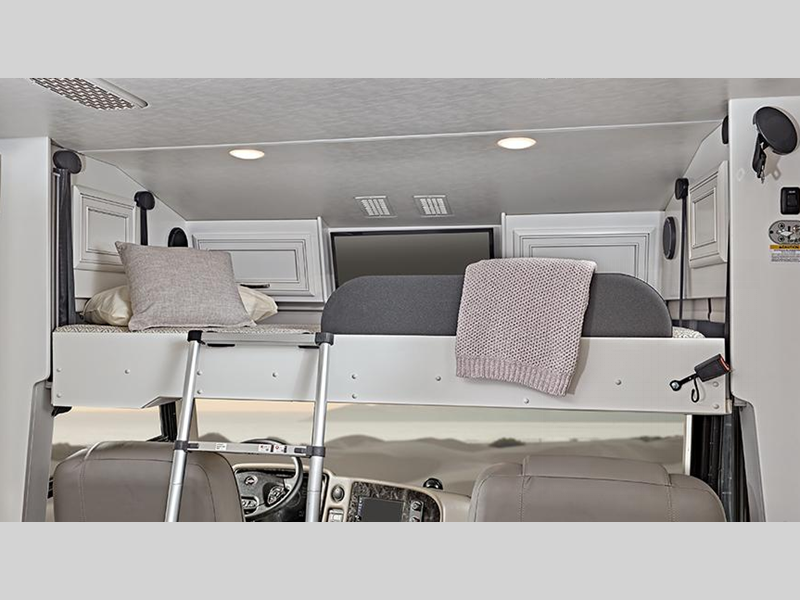

- Power overhead bunk in cab area with 750 lb. capacity
- 34 in. bedroom fireplace (40Q3)
- Starlink satellite internet system
- Winegard® in-motion satellite dome
- Winegard® TRAV’LER satellite dish Dish Network®
- Canadian standards (CSA)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
