Floorplan - 2016 DRV Luxury Suites Mobile Suites 40 KSSB4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+127- Sale Price: $64,995
- List: $80,250
- You Save: $15,255
-
Sleeps 4
-
4 Slides
-
Rear Living AreaKitchen Island
-
41ft Long
-
17,100 lbs

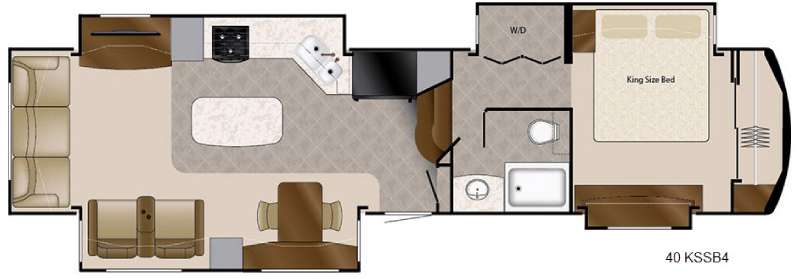

40KSSB4 Floorplan
Specifications
| Sleeps | 4 | Slides | 4 |
| Length | 40 ft 10 in | Ext Width | 8 ft 5 in |
| GVWR | 21000 lbs | Dry Weight | 17100 lbs |
| Fresh Water Capacity | 100 gals | Grey Water Capacity | 75 gals |
| Black Water Capacity | 50 gals | Tire Size | 17.5" |
| Furnace BTU | 40000 btu | VIN | 5KEFA4029G1007955 |
Description
A rear living area, quad slides, kitchen island, and suite with king size bed are just a few of the features that you will find inside the 40KSSB4 Mobile Suite fifth wheel by DRV Suites.
As you enter this fifth wheel you will find two opposing slides in the kitchen and living room area. These slides help to open up the floor space. The slide along the door side has a dinette with two chairs, overhead cabinet, and theatre seats with cup holders. The opposing slide features a TV, three burner range, angled double kitchen sink, and overhead cabinet. Next to the sink you will find a refrigerator. In the middle of the kitchen there is an island which gives extra counter space for meal preparation. Along the rear wall there is a sofa with an overhead cabinet above.
Just inside the entry door you will find a coat closet. Next, head up two steps to a front bathroom and master suite. The bath has a sink, shower, toilet, and cabinet above the toilet.
Across from the bath in the hall enjoy the convenience of a washer/dryer wardrobe which is part of the bedroom slide that also features a king size bed and nightstand. Opposite the bed is a vanity with drawers, and storage cabinets. The front wall features a large wardrobe with sliding doors and so much more!
Features
- Goodyear® 17 1/2" H-Rated Re-Groovable Tires
- Heavy Duty Grease Bolt Shackles with Bronze Bushing
- Kodiak® Automotive Disc Brakes
- MOR/ryde® LRE Rubber Equalizer Suspension
- Heavy Duty 8,000 Lb. Rated Axles
- Commercial Grade EZ Lube Hubs
- 15" Triple Stacked Box Tube Frame
- 101" Wide Body
- Industrial Hydraulic System for Jacks and Lower Level Slides
- Electric Bedroom Slide
- Slide Outs with Select Push Button Controls
- Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle
- 3" Thick Floor
- 14" O.C. Floor Aluminum Floor Joists
- Screwed and Glued Joist Construction
- 5/8" Tongue and Groove Plywood Flooring
- Four Season Perimeter Heat Ducting in Floor
- Residential Rated R29 Formaldehyde Free Wool Insulation
- 3 1/4" Thick Walls/Slides
- 16" O.C. Stud Spacing
- Screwed and Glued Aluminum Stud Construction
- 1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
- 1/4" Thick High Gloss Gelcoat Fiberglass with Wood Backer
- Residential Rated R16 Formaldehyde Free Wool Insulation
- 16" O.C. Rafter Spacing
- Residential Rated R25 Formaldehyde Free Wool Insulation
- 1/2" Plywood Roof Overlayment
- Seamless, 1-Piece Rubber Roof
- Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings
- Straight Roof Line with 8' Tall Interior Slide Out Height
- Subzero Thermo-Pack High Density Wool Insulation
- High Gloss Oyster Colored Gelcoat Fiberglass
- High Gloss Gelcoat Fiberglass Molded Caps
- Custom Painted Exterior
- Frameless Tinted Safety Glass Windows
- Four Exterior Security Lights
- Back-Up Lights with 50 Watt Halogen Lights
- Commercial LED Exterior Clearance Lights
- Red LED Turn Signal
- LED Docking Lights
- 78" Entry Door
- Removable Storm Door Panels
- Metal Slam Door Compartment Latches
- Extra Thick Compartment Doors with Gas Struts
- Easy Access Light Switches for Basement
- Washable Storage Compartment Liner
- Custom Enlarged Control Center with LED Lighting
- Lend-a-Hand Exterior Grab Handle
- Power Awning with Aluminum Weather Shield
- Water Pump Switch at Outside Hookup Center
- 50 Amp Service with Detachable Cord
- 80 Amp 12 VDC Converter
- 100 Gal. Fresh Water Tank
- 75 Gal. Grey Water Tank with Power Flush
- 50 Gal. Black Water Tank with Power Flush
- SeeLevel Tank Monitoring System on All Tanks
- Residential Pex Water Lines
- Exclusive Copper Water Manifold with Individual Shut-Off Valves
- Whole House Water Filtration System
- Anderson Multi-Switch Water Bypass System
- Slide Out Propane Tray with Dual 40 Lb. Tanks
- 12VDC Battery on Pull Out Tray
- 12 Gal. Gas/Electric DSI Water Heater
- 40,000 BTU Furnace with Custom Plenum
- Residential 5 Duct Heating System with 6" Ducting
- Forced Heat Ducting to Tanks/Water System
- Fully Ducted A/C System with Cold Air Return
- 15,000 BTU Low-Profile Main A/C
- Wired and Ducted Bedroom A/C with Cold Air Return
- Triple 15,000 BTU Low-Profile A/Cs (All 43/44' Models)
- Solar Prep
- HD Roof Satellite Prep for Dual DVR Receivers
- HD Ground Satellite and Cable Prep
- Power TV Antenna
- Hand Laid 16 x 16 Vinyl Floor Tile
- Residential Rebond Carpet Pad
- Plush Residential High Durability Nylon Carpet
- Honey Cherry/Mocha Cherry Hardwood Solid Cherry Cabinetry
- Hardwood Solid Cherry Fascia Trim Around Slide Outs
- Hardwood Solid Cherry Cabinet Stiles (Pocket Drilled/Screwed)
- Concealed Cabinet Door Hinges
- Raised Panel Cabinetry
- Soft-Close Full Extension Metal Drawer Guides
- LED Interior Ceiling Lighting on Dimmer Switches
- Decorative Wall Clock
- Utility Closet with Coat Storage and Centralized Control Station
- Interior Ceiling Fan
- Decorative 110V Light Sconces
- Custom Hardwood Dinette Buffet with Solid Surface Top
- Dinette Table with Hidden Leaf Extension
- (2) Hardwood Dinette Chairs with Fabric Accent
- Day/Night Pull Down Pleated Shades
- Crown Molding Throughout
- HD Wiring Throughout
- Franklin Full Width Sofa with Hide-a-Bed
- Franklin Theatre Seating with Center Console (Side Entertainment Models)
- Franklin Recliners (Rear Entertainment Models)
- 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
- Stainless Steel GE Profile Convection/Microwave
- Stainless Steel Residential Dishwasher
- Pull-Out 13 Gal. Garbage Can
- Double Deep Bowl Stainless Steel Sink with Sink Covers
- Residential Goose Neck Faucet with Pull-Out Sprayer
- Custom Made Porcelain Backsplash with Hand Laid Tile
- High Polished Corian® Countertops
- LED Lighted Corian® Edging Around Island
- Sealed 3 Burner Cooktop with Hinged Power Countertop Lift
- Custom Appliance Garage with Pull-Out Tray (Most Models)
- Custom Over the Island Wood/Glass Accent Lights
- Lighted Pantries and Kitchen/Bathroom Toe Kicks
- Lighted Ceiling Soffit with Crown Molding and LED Accent Lighting
- Hardwood Steps
- Hand Laid 16 x 16 Tile in Hallway/Bathroom
- No Carpet in Hallway
- Washer/Dryer Prep
- Heat and A/C Ducting in Bathroom
- MaxxAir® Fan in Bathroom (Exhaust Only)
- 1-Piece Fiberglass Shower with Molded Seat
- 48" 1-Piece Fiberglass Shower with Molded Seat (Some Models)
- Sky-Light Over Shower with LED Pot Light
- Porcelain Toilet with Water Saver Spray
- Macerator Toilet (Some Select)
- Custom Walk-in Front Closet with Built in Dresser
- Real Cedar Lined Front Closet
- Custom Hardwood Wardrobe Doors
- King Bed Suite 72" x 80" with Innerspring Mattress
- Queen Bed Suite (Standard 32 Models)
- Full Storage Under Bed Base
- Separate Bedroom Ceiling Speakers
- Over the Bed Reading Lights on Separate Switches
- Solid Surface Tops of Nightstands
Full Timer's Package (Forced Option):
- 55" Samsung® LED TV and Home Theatre Package
- 32" Samsung® LED Bedroom TV Package
- 15 BTU Ducted Lo/Pro Bedroom A/C
- Whole House Central Vacuum
- Goodyear® 17 1/2" H-Rated Spare Tire and Carrier
- 2" Receiver Boat Hitch with 7-Way Plug
- Manual 4-Step Entry
- Detachable Ladder Only
- Frameless Thermopane Windows
Traveler's Package (Forced Option):
- MCD Day/Night Roller Shades
- Built-In Fireplace
- Magnum 1000W Inverter with Dual 6V Batteries
- Maxxair® Fan with Rain Sensor - Bathroom
- Maxxair® Fan with Rain Sensor - Kitchen
- Power Management System
- Six Point Hydraulic Leveling System
- One Touch Auto Leveling
- MORryde® I.S. Suspension with MORryde® Pin Box
- Keyless Entry Door
- Honey Cherry
- Mocha Cherry
- Camden
- Kashmir
- Milan
- High Ounce Nylon Carpet
- Hand Laid 16 x 16 Floor Tiles
Countertop (Standard)
- High Polished Vernazza
- Power Recliner Theatre Seating/Recliners
- 60" Samsung® LED HDTV (N/A on 34 RESA) (Rear Entertainment Models Only)
- 32" Samsung® LED HDTV Outdoor Entertainment
- Winegard® Trav’ler HD Auto Satellite
- WiFi Ranger Wireless Router
- 3 Burner Range/Oven IPO 3 Burner Cooktop
- Built in Front Wardrobe Safe with Keyless Entry
- Queen Bed Suite (Standard 32' Models)
- Honey Cherry Folding Chair
- Mocha Cherry Folding Chair
- Sleep Number® Bed by Select Comfort
- Vanity Slide in Front Bedroom (Standard on Some Models) (N/A on 32' MS)
- 15 BTU Ducted Lo/Pro AC – Bedroom
- Heat Pump
- MaxxAir® with Switch Control – Bedroom
- Splendide® Front Load 2 piece
- Splendide® XC 2,100 Combo
- Generator Prep-Auto Change Over
- Onan® 5,500 Marquis Gold Generator with Prep
- Magnum 2,800 Watt Inverter with Four 6V Batteries
- Surge Protector with Voltage Protection and Remote Display
- Heat Pads on All Tanks with Elbow Heater on Drain Pipe
- Power 4-Step Entry (Exclusive)
- Power Cord Reel (N/A on 34 RESA)
- HBA Brake Cam (To be Ordered Special for Customers with GM Trucks)
- Slide Toppers
- Power Dinette Patio Awning with Weathershield
- Slide Out Storage Tray (36" x 90")
- Audible Wireless Backup Camera System
- RVIA
- CSA
- Crimson Dusk
- Shadow Birch
- Copperbay
- Silver Sands
