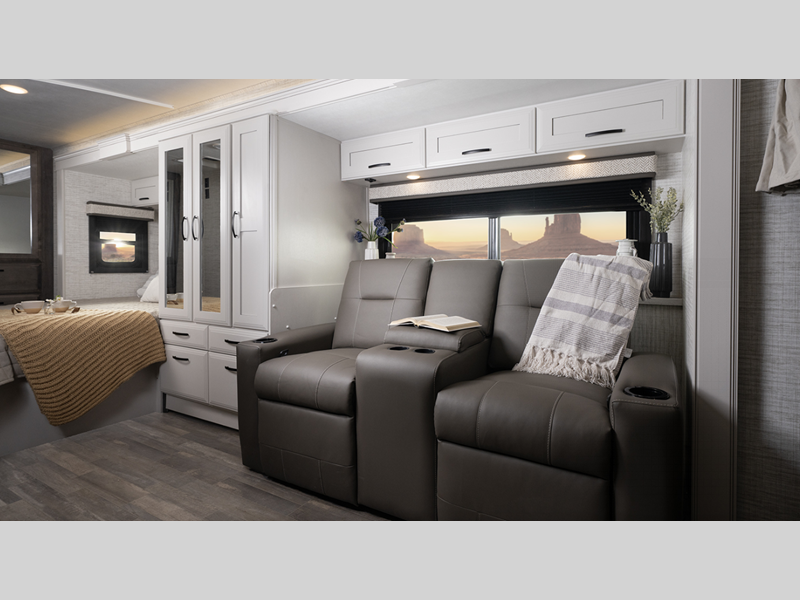

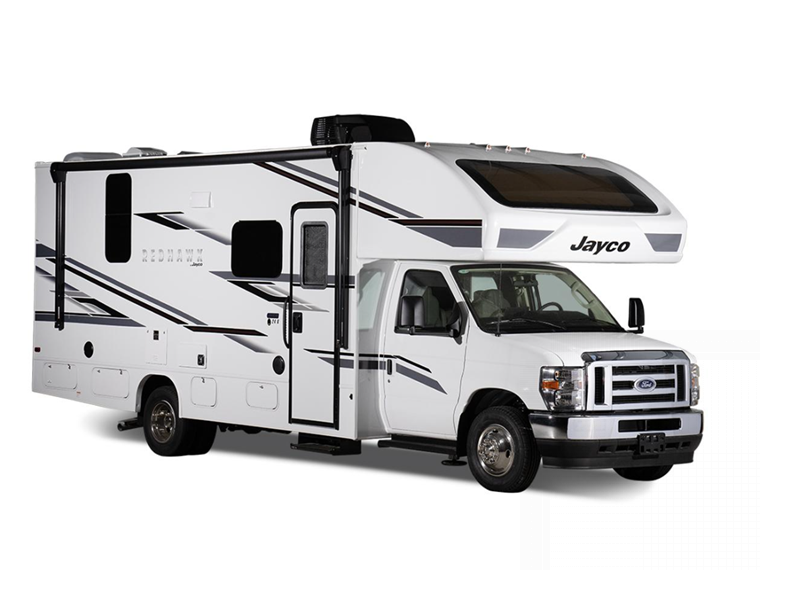

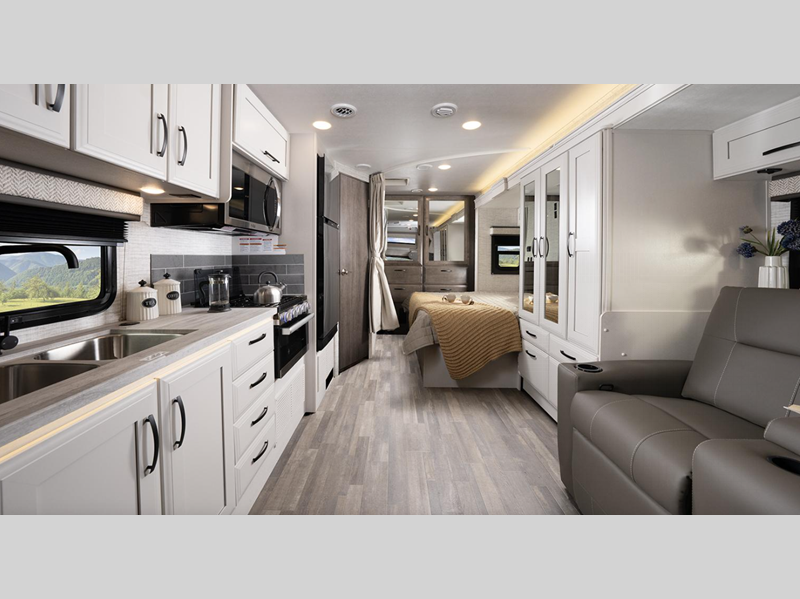

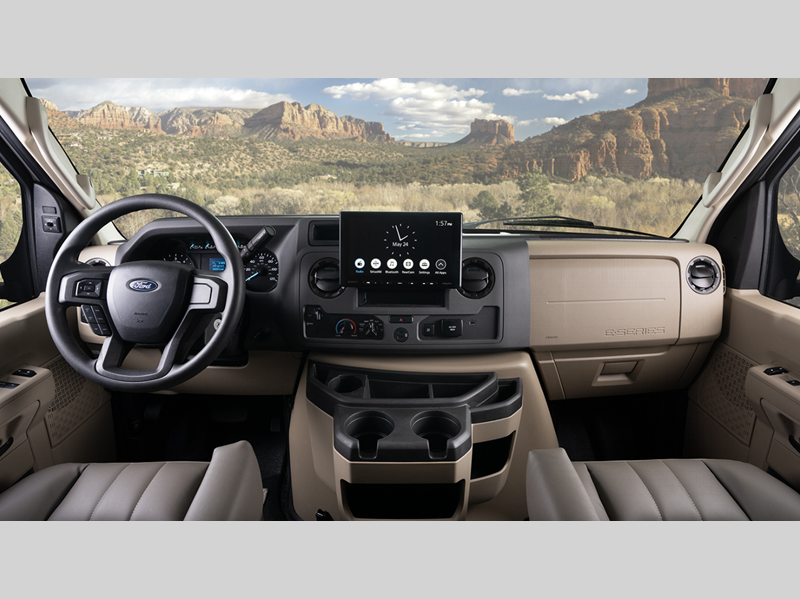

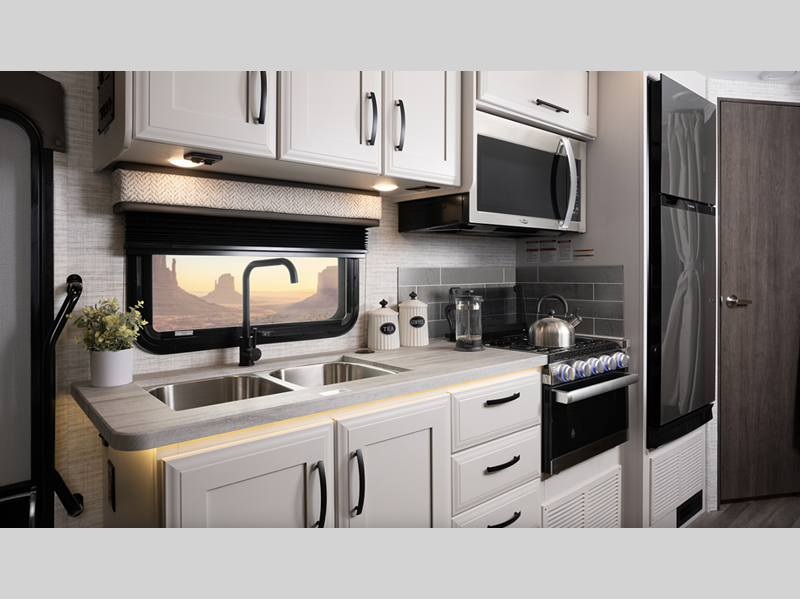

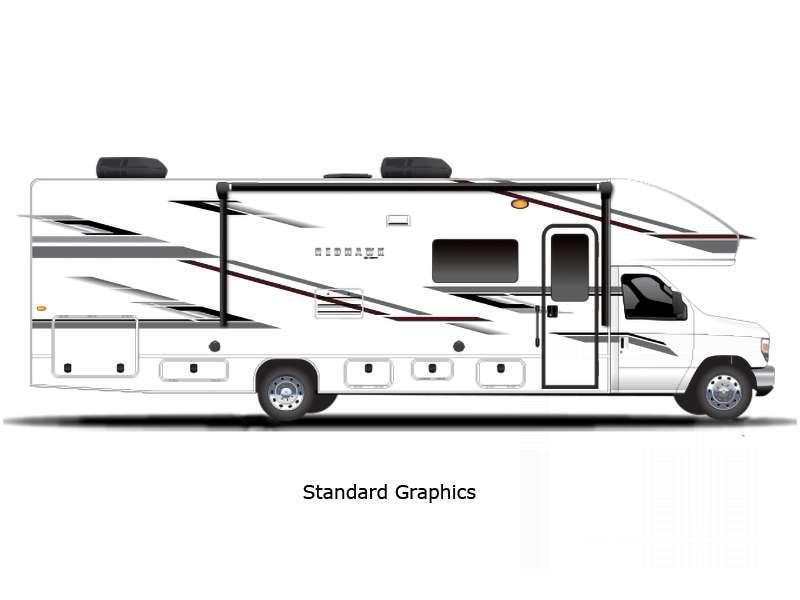

  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
  • Redhawk Stock Photo
Next
1 of 18

The Jayco Redhawk Class C motor home is the perfect choice for a quick weekend trip to the lake or an extended cross-country excursion. Inside its spacious interior you'll find all the things your family needs. Like ample storage and cable TV hookup, plus the comfortable living spaces you crave while you're on the road.

And thanks to the electric-powered slide out, you can easily expand the living space to give your family room to really spread out. All Redhawk models are full of distinctive features like Honey Cherry cabinetry, and a variety of interior color schemes, making it an elegant, but great value.

Get more than you pay for when you choose a Jayco Redhawk class C motorhome for your next traveling adventure.

  • Redhawk 23X2

    Redhawk 23X2 Floorplan Image

    When you are ready to travel the country, choose the Redhawk 23X2 motor home by ... more about Redhawk 23X2

    Specifications

    Sleeps 5
    Slides 2
    Length 27 ft 2 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 5000 lbs
    Gross Weight 14200 lbs
    Fresh Water Capacity 43.5 gals
    Grey Water Capacity 34 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4,000-watt MicroQuiet
    Fuel Type Gas
    Engine 6L Vortec V-8
    Chassis Chevy 4500
    Horsepower 342 hp
    Fuel Capacity 57 gals
    Wheelbase 181 in
    Number Of Bunks 1
    Available Beds Queen
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 42 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 10'8" Power
    Gross Combined Weight 20000 lbs
    Shower Type 7

    Similar Floorplans

  • Redhawk 23XM

    Redhawk 23XM Floorplan Image

    When you are ready to travel the country, choose the Redhawk 23XM motor home by ... more about Redhawk 23XM

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 26 ft 8 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 7500 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 43.5 gals
    Grey Water Capacity 34 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4,000-watt MicroQuiet
    Fuel Type Gas
    Engine Triton 6.8L
    Chassis Ford E450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 181 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 42 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 10'8" Power
    Gross Combined Weight 22000 lbs
    Shower Type 7

    Similar Floorplans

  • Redhawk 26X1

    Redhawk 26X1 Floorplan Image

    The Redhawk 26X1 double slide out motor home by Jayco really can be your home on ... more about Redhawk 26X1

    Specifications

    Sleeps 5
    Slides 2
    Length 29 ft 2 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 5000 lbs
    Gross Weight 14200 lbs
    Fresh Water Capacity 47 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4,000 - watt MicroQuiet
    Fuel Type Gas
    Engine 6L Vortec V-8
    Chassis Chevy 4500
    Horsepower 342 hp
    Fuel Capacity 57 gals
    Wheelbase 182 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 35 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 13' Power
    Gross Combined Weight 20000 lbs
    Shower Type 7

    Similar Floorplans

  • Redhawk 26XD

    Redhawk 26XD Floorplan Image

    The Redhawk 26XD double slide motor home by Jayco really can be your home on ... more about Redhawk 26XD

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 28 ft 8 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 7500 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 47 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4,000 - watt MicroQuiet
    Fuel Type Gas
    Engine Triton 6.8 EFI V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 181 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 35 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 13' Power
    Gross Combined Weight 22000 lbs
    Shower Type 7

    Similar Floorplans

  • Redhawk 29XK

    Redhawk 29XK Floorplan Image

    With features like a single slide, u-dinette, and a cab over bunk, you will have ... more about Redhawk 29XK

    Specifications

    Sleeps 6
    Slides 1
    Length 32 ft 6 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 7500 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 43.5 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4000 - watt MicroQuiet
    Fuel Type Gas
    Engine Triton 6.8L
    Chassis Ford E450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 223 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 87 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 16' Power
    Gross Combined Weight 22000 lbs
    Shower Type 7

    Similar Floorplans

  • Redhawk 31XL

    Redhawk 31XL Floorplan Image

    A set of bunk beds, double slide outs, and a front cab bunk are some of the ... more about Redhawk 31XL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 10
    Slides 2
    Length 32 ft 6 in
    Ext Width 8 ft 4 in
    Ext Height 11 ft 6 in
    Int Height 7 ft
    Interior Color Dove, Chestnut
    Hitch Weight 7500 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 47 gals
    Grey Water Capacity 41 gals
    Black Water Capacity 32 gals
    Furnace BTU 31000 btu
    Generator Onan 4,000 - watt MicroQuiet
    Fuel Type Gas
    Engine Triton 6.8L
    Chassis Ford E450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 223 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 42 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    Basement Storage 41 cu. ft.
    TV Info Above Cab 32" LED TV
    Awning Info 10'8" Power
    Gross Combined Weight 22000 lbs
    Shower Type 7

    Similar Floorplans

Redhawk Features:

Standard Features

Customer Value Package (Mandatory)
  • J-Ride® Package: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation mounts
  • 32" TV LED
  • 8 cu. ft. Refrigerator w/Manual Controls
  • 1000W Inverter

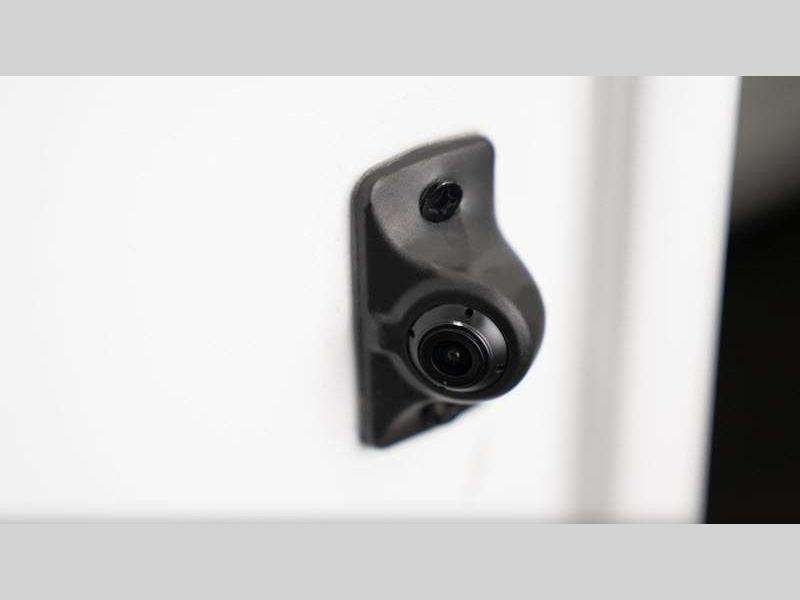

  • Back-up Camera & Monitor
  • Black Tank Flush
  • Cream Fiberglass Sidewalls
  • Frameless Windows
  • Front Fiberglass Cap
  • Auxiliary Input Jack
  • Power Awning, Tank Heating Pads

Driving Equipment

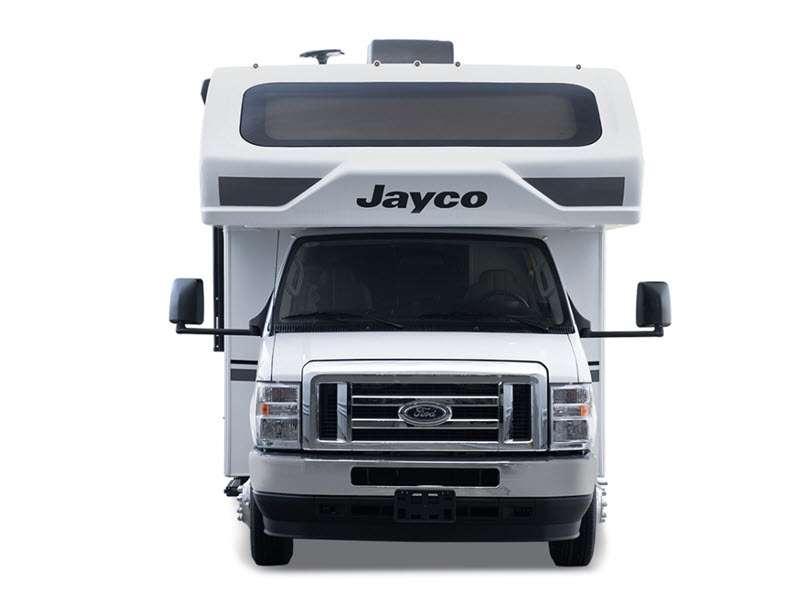

  • Ford E-450 chassis
  • - Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque
  • - 6-speed automatic TorqShift series transmission with overdrive
  • - 14,500-pound GVWR
  • - 22,000-pound GCWR
  • - 7,500-pound hitch with 7-pin plug
  • Chevrolet 4500 Chassis
  • - 6L Vortec V8 342HP engine with 373 pound-feet torque
  • - Hydra-matic 6-speed automatic transmission with overdrive
  • - 4,200-pound GVWR
  • - 20,000-pound GCWR
  • - 5,000-pound hitch with 7-pin plug
  • JRide
  • 120-amp alternator
  • 55-gallon fuel tank
  • Driver and passenger air bags
  • Power anti-lock brakes with power steering
  • Tilt steering wheel
  • Auxiliary start switch
  • A/C and cruise control
  • Remote-controlled, side-view mirrors
  • Power windows and door locks
  • Third brake light
Exterior
  • Vacuum-bonded, laminated roof, floor and sidewalls
  • Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls)
  • Aluminum running boards
  • Fiberglass, radius-cornered entrance door with screen door

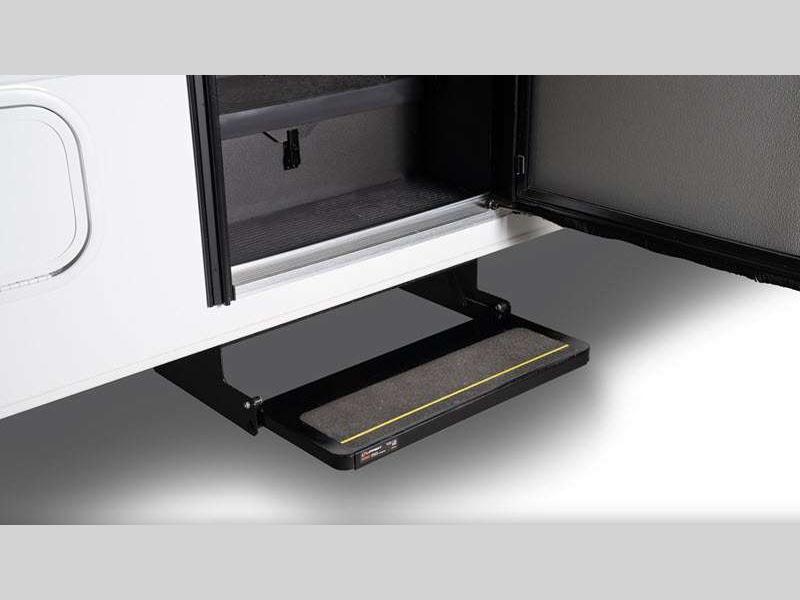

  • Electric-powered entrance step
  • Pass-through storage compartment with light (select models)
  • Onan 4,000-watt MicroQuiet generator
  • 42-lb. propane tank
  • 120V G.F.C.I.-protected exterior receptacle
  • 12V electrical system with 120V, 60-amp power converter
  • 30-amp power cord
  • Slideout battery tray with 12V house battery
  • Outside shower
  • 4" bumper-tube sewer hose storage
  • Roof ladder (based on floorplan)
  • Leveling jack prep

Interior

  • 84" ceiling height
  • Honey Cherry cabinetry and doors with oil-rubbed bronze cabinet hardware
  • Ball bearing drawer guides

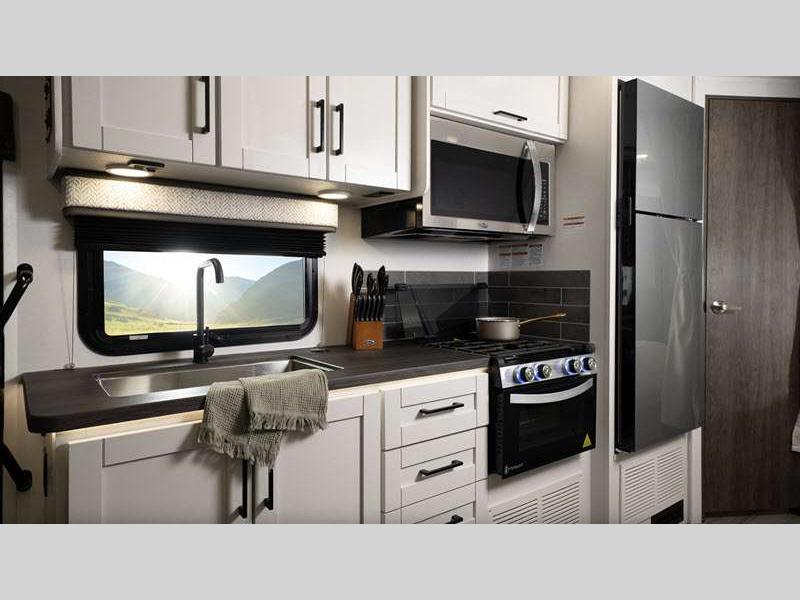

  • 3-burner range with 9,000-BTU SuperBurner and piezo igniter

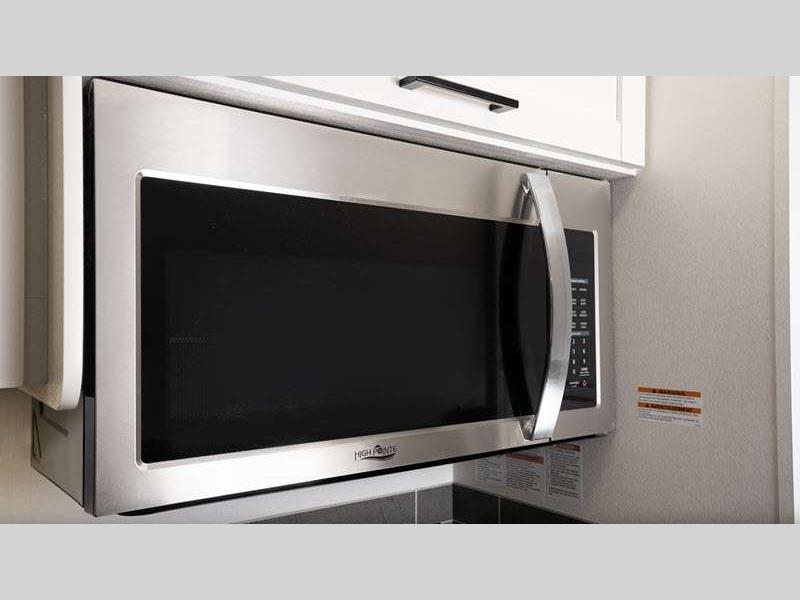

  • Convection microwave oven (23XM, 26XD, 29XK, 23X2, 26X1)
  • 12V demand water pump
  • 6 gallon gas/electric DSI auto-ignition water heater
  • Water filtration system
  • Dream Dinette™ mechanism, easily raises and lowers dinette tabletop (23XM, 26XD, 31XL, 23X2, 26X1)
  • Lap safety belts on all living area seats
  • Linoleum flooring
  • Interior command center
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 15,000-BTU ducted air conditioner
  • 31,000-BTU auto-ignition furnace with wall thermostat

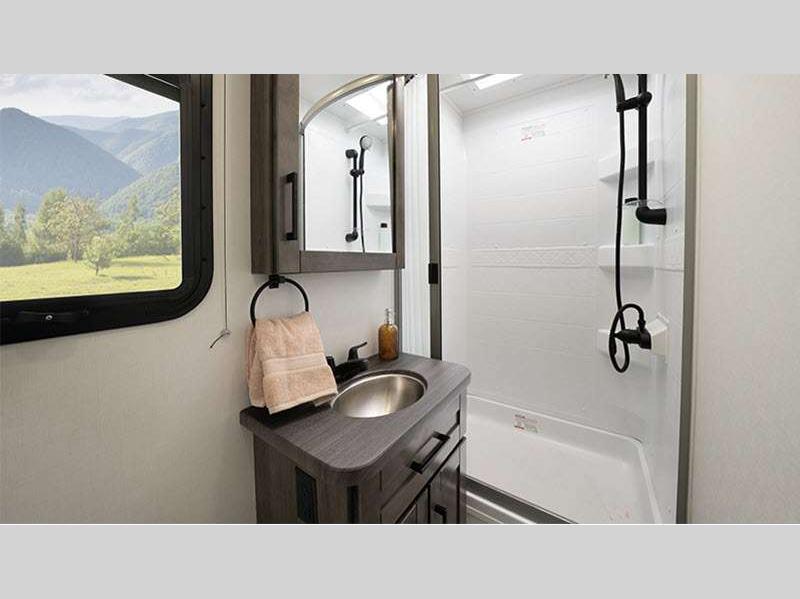

  • ABS shower with decorative surround
  • Removable clothing rod in shower
  • Skylight in shower
  • Toilet with foot flush
  • Queen-sized bed with bedspread
  • Under-bed storage
  • Large wardrobes

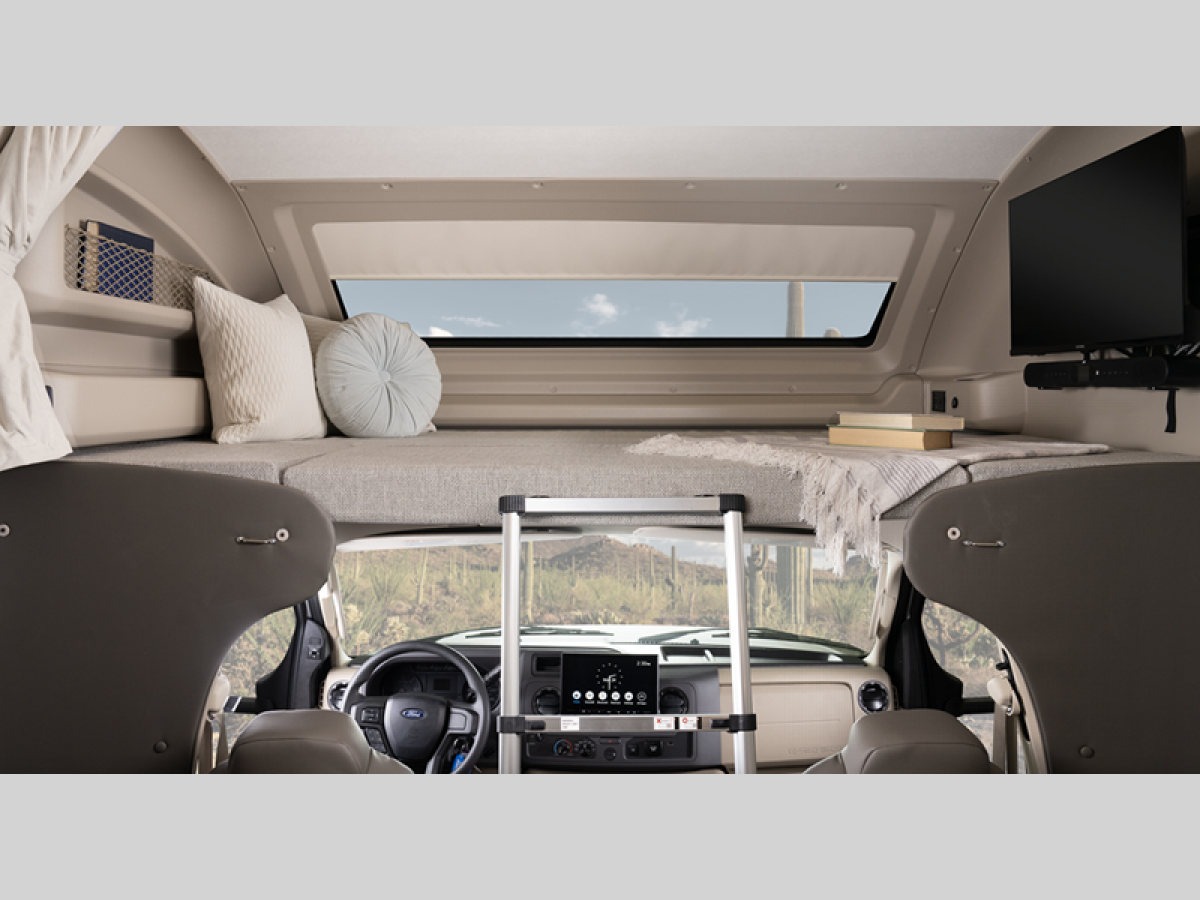

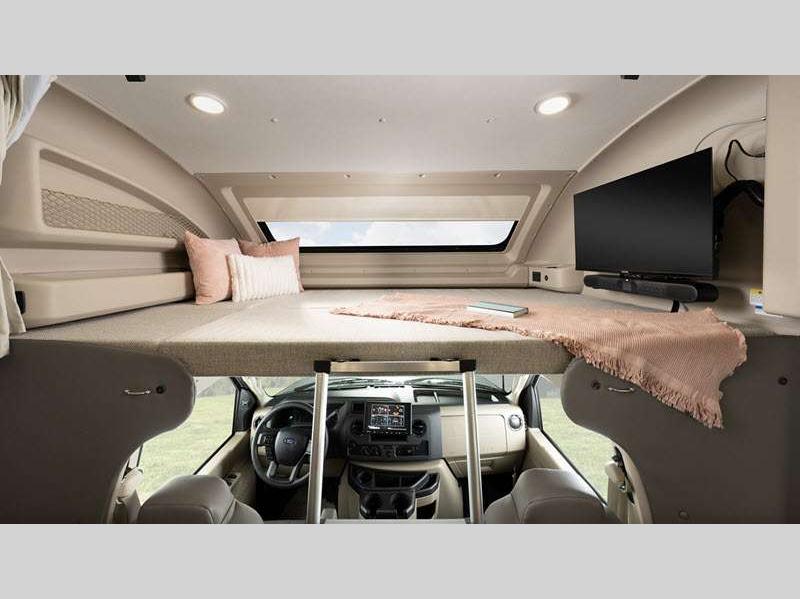

  • Full cab-over bunk with headboard (750-lb. rating)
  • Bunk beds (300-lb. rating) (31XL)
Options
  • Canadian Standards (23XM, 26XD, 29XK, 31XL)
  • Customer Value Package - 32" TV LED, 8 cu. ft. Refrigerator w/Manual Controls, 1000W Inverter, Back-up Camera & Monitor, Black Tank Flush, Cream Fiberglass Sidewalls, Frameless Windows, Front Fiberglass Cap, J-Ride Package, Auxiliary Input Jack, Power Awning, Tank Heating Pads
  • Hydraulic Auto Leveling Jacks



See us for a complete list of features and available options.

All features and specifications are subject to change.
